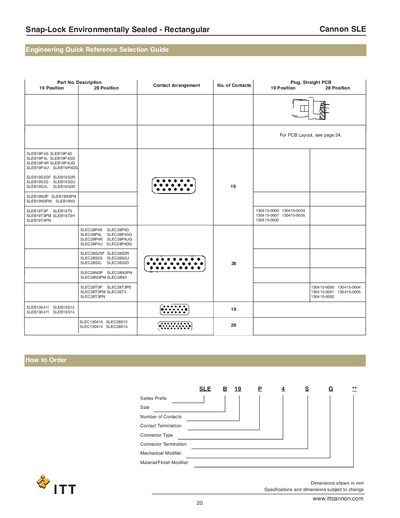

The ITT Cannon SLE series provides environmentally‑sealed rectangular connectors for PCB, black‑box, cable‑to‑cable, and bulkhead applications. The guide lists the available 19‑ and 28‑contact configurations, part numbers, and mechanical options such as endbell styles and flange mounts.
Key features include gold‑ or tin/lead‑plated contacts, hand‑insertable contacts, temperature operation from –40 °C to +125 °C, and current ratings of 5 A (signal) and 13 A (power). Detailed mechanical dimensions, wire‑size options, and test parameters are also provided for designers.
| Operating Temperature | -40 °C to +125 °C |
|---|---|
| Signal Current Rating | 5 A continuous at 125 °C |
| Power Current Rating | 13 A continuous at 125 °C |
| Dielectric Withstanding Voltage | 1000 V rms AC |
| Wire Size (AWG) | 20‑16 AWG |
They are rated for continuous operation from –40 °C to +125 °C.
Signal contacts are rated for 5 A and power contacts for 13 A, both continuous at 125 °C.
They can withstand 1000 V rms AC without breakdown.
The connectors accept wire sizes from 20 AWG to 16 AWG.
