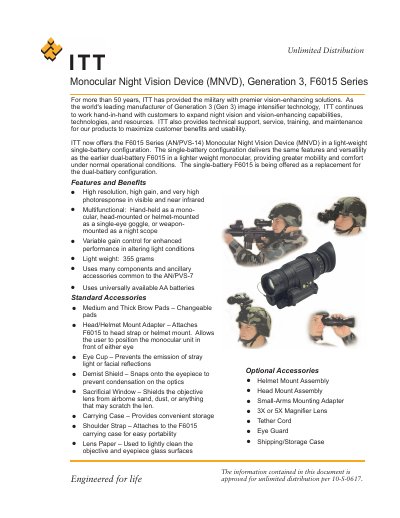

ITT has been providing the military with premier vision-enhancing solutions for over 50 years. The F6015 Series (AN/PVS-14) Monocular Night Vision Device (MNVD) offers lightweight single-battery configuration, providing greater mobility and comfort under normal operational conditions.
The F6015 Series Monocular Night Vision Device (MNVD) is a Generation 3, single‑battery night‑vision system designed for military ground operations. It delivers high resolution, high gain, and strong photoresponse in visible and near‑infrared light, and can be used hand‑held, head‑mounted, helmet‑mounted, or weapon‑mounted.
Standard accessories include brow pads, head/helmet mount adapters, eye cup, demist shield, sacrificial window, carrying case, shoulder strap, and lens paper. Optional accessories such as helmet mount assemblies, small‑arms mounting adapters, magnifier lenses, and tether cords expand its versatility. Technical specifications cover resolution, magnification, field of view, brightness gain, temperature ranges, and weight.
| On‑Axis Resolution (F6015PA) | 1.3 cycles/milliradian |
|---|---|
| On‑Axis Resolution (F6015JA) | 1.0 cycles/milliradian |
| System Magnification | 1 X ±0.03 |
| System Distortion | Less than 3% |
| Range Focus | 25 cm to infinity |
| Diopter Focus | +2 to -6 diopters |
| Exit Pupil and Eye Relief | 14 mm on‑axis exit pupil at 25‑mm eye relief |
| Field of View | 40 ±2° |
| System Brightness Gain | Adjustable from 25 to >3,000 |
| Operating Temperature | -51 °C to +49 °C |
| Storage Temperature | -51 °C to +85 °C |
It uses a lightweight single‑battery configuration, replacing the earlier dual‑battery version.
The field of view is approximately 40 degrees, plus or minus 2 degrees.
