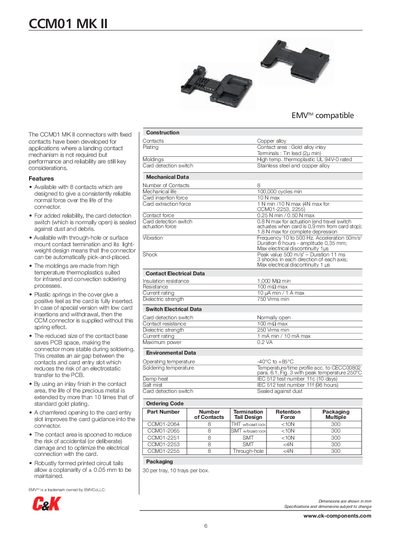

CCM01 MK II is a 8-pole card socket launched by CK-Components. Its main features are high temperature thermoplastic material and gold alloy inlay, which have good high temperature resistance and corrosion resistance. The product also has a service life of 100,000 cycles and a contact resistance of 100 mΩ, which can meet the needs of various application scenarios.
The CCM01 MK II connector provides eight reliable contacts with a gold‑alloy inlay plating and a sealed card detection switch for dust protection. It is available in both through‑hole (THT) and surface‑mount (SMT) terminations, and its lightweight design supports automated pick‑and‑place assembly.
Technical data include mechanical life of at least 100,000 cycles, insertion force up to 10 N, and environmental ratings from –40 °C to +85 °C. Detailed ordering codes and dimensional drawings are provided for easy integration into PCB designs.
| Number of contacts | 8 |
|---|---|
| Mechanical life | 100,000 cycles min |
| Card insertion force | 10 N max |
| Card extraction force | 1 N min / 10 N max |
| Contact force | 0.25 N min / 0.50 N max |
| Insulation resistance | 1,000 MΩ min |
| Contact resistance | 100 mΩ max |
| Dielectric strength (contact) | 750 V min |
| Current rating (contact) | 10 pA min / 1 A max |
| Operating temperature range | -40 °C to +85 °C |
It has eight contacts.
The connector operates from –40 °C to +85 °C.
The maximum card insertion force is 10 N.
Yes, the card detection switch is sealed against dust.
