5 SURE-SEAL/Mini SURE-SEAL is a waterproof and dustproof connector from itt cannon. It has IP67 protection rating and can operate in -40 to 105 degrees Celsius.

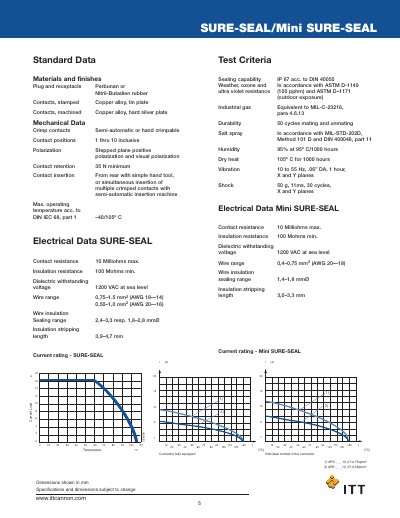

This datasheet describes the ITT Cannon 5SURE-SEAL and Mini SURE-SEAL circular connectors. It lists dimensions, material finishes, contact types, and mechanical data such as crimp contact retention and operating temperature range.
Electrical characteristics are also detailed, including contact resistance, insulation resistance, dielectric withstanding voltage, and environmental test criteria like IP67 sealing, salt‑spray, humidity, and vibration resistance.
| Contact resistance (SURE‑SEAL) | 10 mΩ max |
|---|---|
| Insulation resistance (SURE‑SEAL) | 100 MΩ min |
| Dielectric withstanding voltage | 1200 VAC |
| Operating temperature range | -40 °C to 105 °C |
| IP rating | IP67 |
| Sealing range (SURE‑SEAL) | 2.4–3.3 mm Ø |
| Sealing range (Mini SURE‑SEAL) | 1.4–1.8 mm Ø |
The SURE‑SEAL connector has a maximum contact resistance of 10 milliohms.
Both connectors are rated IP67 for sealing capability.
The connectors can operate from –40 °C up to 105 °C.
The dielectric withstanding voltage is 1200 VAC at sea level.
