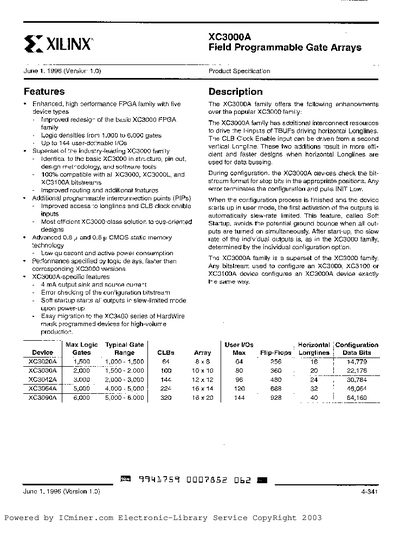

Xilinx XC3000A Field Programmable Gate Array Product Specification

This document is provided by ICminer.com Electronic-Library Service. It describes the features and characteristics of a product.

Brand: Xilinx
Document type: Datasheet
Language: English
Pages: 8
File format: PDF
File size: 280 KB
Published: 11 June, 2012
Updated: 28 September, 2023
Model: XC3000A
MD5 checksum: 2AE586DC397C28A90CFFC14E27DFF503
PDF: Xilinx XC3000A Field Programmable Gate Array Product Specification PDF

About this manual

This document is a product specification for the Xilinx XC3000A family of Field Programmable Gate Arrays (FPGAs). Released in June 1996, this datasheet describes an enhanced version of the popular XC3000 family with improved performance and additional programmable interconnection points. The family includes five device types ranging from 1,000 to 6,000 logic gates.

What's inside

Features
Description
XC3000A Switching Characteristics
Operating Conditions
DC Characteristics
Absolute Maximum Ratings
Global Buffer Switching Characteristics
CLB Switching Characteristics

Specifications

Logic Density Range	1,000 to 6,000 gates
User I/Os	Up to 144 user-definable /Os
Output Sink Current	4 mA
Configuration Error Checking	Yes

Frequently asked questions

Is the XC3000A compatible with previous XC3000 devices?

Yes, it is a superset of the industry-leading XC3000 family and identical in structure.

What happens if there is an error during configuration?

The device checks for stop bits; any error terminates configuration and pulls INIT Low.
