Introduces the features and characteristics of Xilinx XPLA PLD, including TotalCMOS PLD, Fast Zero Power design technique, IEEE 1149.1-compliant, JTAG Testing Capability, 5V, In-System Programmable (ISP), high speed pin-to-pin delays, ultra-low static power, 100% routable, four clocks, programmable clock polarity, support for asynchronous clocking, innovative XPLA™ architecture, 1000 erase/program cycles, 20 years data retention, logic expandable to 37 product terms, PCI compliant, Advanced 0.5µ E2CMOS process, Security bit prevents unauthorized access, Design entry and verification using industry standard and Xilinx CAE tools, Reprogrammable using industry standard design tools

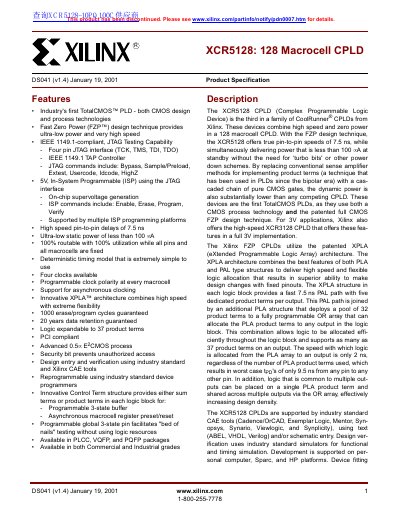

The XCR5128 is a Complex Programmable Logic Device (CPLD) from the CoolRunner family by Xilinx. It utilizes the innovative XPLA architecture, combining high speed with extreme flexibility through a Zero-power Interconnect Array (ZIA). The device offers true pin-to-pin speeds of 7.5 ns and ultra-low static power of less than 100 µA at standby.
The device supports logic expansion up to a total of 37 product terms.
The worst-case pin-to-pin delay is 9.5 ns when using six to 37 product terms.
The XCR5128 contains a total of 128 macrocells.
