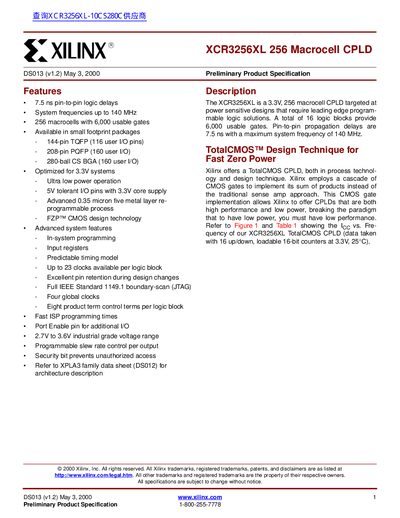

The file is about Xilinx XCR3256XL CPLD datasheet, which contains features and specifications of the product
The XCR3256XL is a 3.3V, 256 macrocell Complex Programmable Logic Device (CPLD) designed for power-sensitive applications requiring high performance. It features up to 140 MHz system frequency with pin-to-pin logic delays of 7.5 ns and utilizes Xilinx's TotalCMOS design technology.
| System Frequency | 140 MHz |
|---|---|
| Logic Delays | 7.5 ns |
| Macrocells | 256 |
| Usable Gates | 6,000 |
| Voltage Range | 2.7V to 3.6V |
The device supports a maximum system frequency of 140 MHz.
A total of 6,000 usable gates are provided across 16 logic blocks.
The device operates within a 2.7V to 3.6V industrial grade voltage range.
