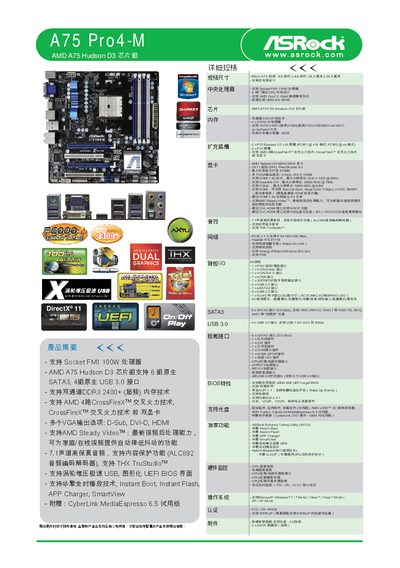

This document provides detailed specifications and features of the AMD A75 Hudson D3 chipset A75 Pro4-M motherboard, including supported processors, memory technology, expansion slots, graphics cards, audio, network functions, and more. The motherboard features a Micro ATX form factor and supports AMD CrossFireX technology and dual graphics card configuration. It also includes features such as Turbo Boosted USB, graphical UEFI BIOS interface, and All-Solid Capacitor design.
The guide details the core specifications of the ASRock A75 Pro4-M motherboard, including its FM1 socket with support for 100 W CPUs, dual‑channel DDR3 memory up to 2400 MHz, and a range of expansion slots such as a PCI‑Express 2.0 x16 slot. It also lists the integrated graphics outputs (D‑Sub, DVI‑D, HDMI) and audio capabilities using a Realtek ALC892 7.1‑channel codec.
Connectivity options are highlighted, featuring four USB 3.0 ports, five SATA III (6 Gb/s) connectors, and Ethernet with Wake‑on‑LAN support. The document also mentions bundled software utilities like CyberLink MediaEspresso and ASRock’s Instant Boot features. This manual is written in Chinese.
| CPU socket | Socket FM1, 100 W TDP |
|---|---|
| Memory type | DDR3, up to 2400 MHz (overclock) |
| USB 3.0 ports | 4 |
| Video outputs | D‑Sub, DVI‑D, HDMI |
| PCI Express slot | PCIe 2.0 x16 |
| Power connector | 24‑pin ATX |
It supports Socket FM1 processors with a maximum TDP of 100 W.
The motherboard includes four USB 3.0 ports.
