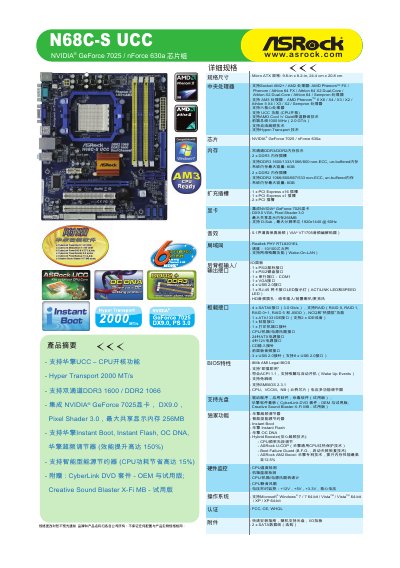

This document introduces a motherboard that supports ASRock UCC – CPU Core Unlocking function, with a Hyper Transport 2000 MT/s speed and support for dual channel DDR3 1600 / DDR2 1066 memory. It integrates NVIDIA® GeForce 7025 graphics card and supports ASRock Instant Boot, Instant Flash, OC DNA, and other functions. The motherboard supports AMD PhenomTM FX / Phenom / Athlon 64 FX / Athlon 64 X2 Dual-Core / Athlon X2 Dual-Core / Athlon 64 / Sempron processors, supports six-core processors and UCC function. It is equipped with 5.1 channel high fidelity audio and 10/100 Ethernet interface.
The N68C-S UCC board supports a wide range of AMD processors, including AM2+, AM2 and AM3 sockets, with UCC technology for CPU core unlocking. It offers dual-channel DDR3 and DDR2 memory slots, integrated NVIDIA GeForce 7025 graphics, and a rich set of I/O connectors.
Additional features include hardware monitoring, overclocking tools, instant boot and flash utilities, as well as RAID‑capable SATA ports and comprehensive audio and networking support. This manual is written in Chinese.
| CPU Socket | Socket AM2+ / AM2 |
|---|---|
| Maximum Memory | 8 GB |
| SATA Ports | 4 x SATAII (RAID 0,1,0+1,5,JBOD) |
| Audio | 5.1 channel VIA VT1705 codec |
| Network | Realtek RTL8201EL, 10/100 Mbps Ethernet |
Enter BIOS by pressing F2 or DEL, set "ASRock UCC" to Enabled, then save and exit with F10.
It includes an NVIDIA GeForce 7025 GPU with DirectX 9.0 support and up to 256 MB of shared video memory.
Yes, the four SATAII ports support RAID 0, RAID 1, RAID 0+1, RAID 5 and JBOD.
