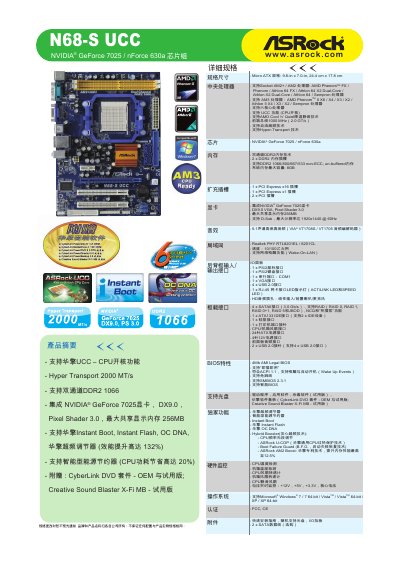

This motherboard supports ASRock UCC – CPU core unlock function, Hyper Transport 2000 MT/s, supports dual-channel DDR2 1066, integrated NVIDIA® GeForce 7025 graphics, DX9.0, Pixel Shader 3.0, maximum shared display memory 256MB, supports ASRock Instant Boot, Instant Flash, OC DNA, ASRock Overclocking Regulator (performance boost up to 132%), supports intelligent energy saving (CPU power saving up to 20%), bundled with CyberLink DVD Suite - OEM and trial version; Creative Sound Blaster X-Fi MB - trial version, size is Micro ATX specification: 9.6-in x 7.0-in, 24.4 cm x 17.8 cm
The N68-S UCC motherboard supports a wide range of AMD processors, including Socket AM2+/AM2 and AM3 CPUs such as Phenom, Athlon, and Sempron models, with up to six cores when using ASRock UCC. It features dual-channel DDR2 memory slots supporting up to 8 GB of non‑ECC memory and integrates the NVIDIA® GeForce 7025 graphics chipset with up to 256 MB shared video memory.
The board provides extensive I/O including 4 × USB 2.0 ports, 4 × SATA II connectors with RAID support, VGA, PS/2, and Ethernet (Realtek PHY RTL8201EL/8201CL). BIOS features include Instant Boot, Instant Flash, OC DNA overclocking profiles, and the ASRock UCC CPU core unlocking utility. Hardware monitoring covers voltage, fan speeds, and temperature sensors, and the board is certified for FCC and CE compliance. This manual is written in Chinese.
| CPU Socket | Socket AM2+ / AM2 |
|---|---|
| SATA Ports | 4 x SATA II (3.0 Gb/s) with RAID 0/1/0+1/5/JBOD |
| Audio Codec | VIA® VT1708S / VT1705, 5.1 channel |
| Network Controller | Realtek PHY RTL8201EL / 8201CL, 10/100 Mbps |
| Dimensions | Micro ATX 9.6 in × 7.0 in (24.4 cm × 17.8 cm) |
| Operating System Support | Windows 7/ Vista/ XP (32‑bit & 64‑bit) |
Enter BIOS by pressing F2 or DEL, set "ASRock UCC" to Enabled, then save and exit with F10.
The integrated NVIDIA GeForce 7025 chipset provides up to 256 MB of shared video memory.
It supports Microsoft Windows 7, Windows Vista, and Windows XP, both 32‑bit and 64‑bit versions.
