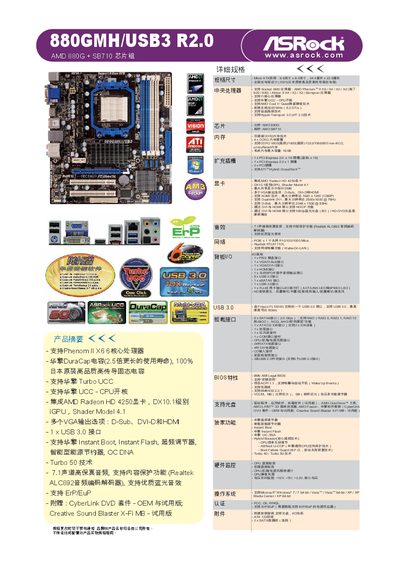

This document introduces the features and characteristics of the ASRock 880GMH/USB3 R2.0 motherboard, including support for Phenom II X6 6-core processors, ASRock DuraCap capacitors, support for ASRock Turbo UCC and UCC, and integrated AMD Radeon HD 4250 graphics card with multiple VGA output options.
The ASRock 880GMH/USB3 R2.0 is a Micro‑ATX motherboard built around the AMD 880G northbridge and SB710 southbridge. It supports AMD Phenom II and Athlon II processors on a Socket AM3, offers four DDR3 DIMM slots for up to 16 GB of memory, and integrates an AMD Radeon HD 4250 graphics core with DirectX 10.1 support.
The board provides a rich set of I/O, including one USB 3.0 port, five SATA II connectors, a Realtek RTL8111DL gigabit Ethernet, and a Realtek ALC892 7.1‑channel audio codec. BIOS utilities such as Instant Flash, Turbo 50, and OC DNA add overclocking and update capabilities. The specification sheet also lists bundled software and power‑saving features like ErP/EuP compliance. This manual is written in Chinese.
| Form Factor | Micro ATX (9.6" x 9.0") |
|---|---|
| CPU Socket | Socket AM3 |
| Supported CPUs | AMD Phenom II X6/X4/X3/X2 (except 920/940), Athlon II X4/X3/X2, Sempron |
| Memory Slots | 4 x DDR3 DIMM |
| Maximum Memory | 16 GB |
| Chipset | AMD 880G northbridge, AMD SB710 southbridge |
| Integrated Graphics | AMD Radeon HD 4250, DirectX 10.1, Shader Model 4.1 |
| Audio Codec | Realtek ALC892 7.1‑channel |
| USB 3.0 Ports | 1 x USB 3.0 |
| SATA Ports | 5 x SATA II (3.0 Gb/s) |
| Network Interface | Realtek RTL8111DL Gigabit Ethernet |
It supports AMD Phenom II X6/X4/X3/X2 (except 920/940), Athlon II X4/X3/X2, and Sempron processors on a Socket AM3.
The board includes one USB 3.0 port.
