The AMD 760G + SB710 chipset 760GM-S3 is a motherboard that supports AMD PhenomTM II X6 / X4 / X3 / X2 / Athlon II X4 / X3 / X2 / Sempron processors. It supports UCC function, CPU unlocking, and integrated AMD Radeon 3000 graphics. In addition, it also supports dual-channel DDR3 memory technology, PCI Express slots, 5.1 channel high-fidelity audio, and Wake-On-LAN function. The motherboard adopts Micro ATX form factor and is compatible with Socket AM3 processors.
The ASRock 760GM-S3 is a Micro‑ATX motherboard built around the AMD 760G northbridge and SB710 southbridge. It supports Socket AM3 CPUs, dual‑channel DDR3 memory, an integrated AMD Radeon 3000 graphics core, and a range of I/O including USB 2.0, SATA2, and Realtek LAN.

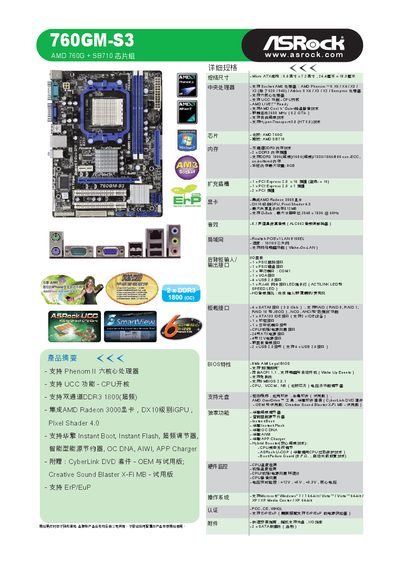

This manual covers the board’s hardware specifications, step‑by‑step installation, BIOS features, power‑saving technologies, and bundled software such as CyberLink media tools and ASRock’s SmartView and AWI utilities. This manual is written in Chinese.
| Form Factor | Micro ATX 9.6" x 7.2" |
|---|---|
| Memory Type | DDR3 1800 (overclock), 1600, 1333/1066/800 non‑ECC, un‑buffered |
| Maximum Memory Capacity | 4 GB per channel (8 GB total) |
| Audio Codec | Realtek ALC662, 5.1‑channel HD audio |
| SATA Ports | 4× SATA2 3.0 Gb/s, RAID 0/1/10/JBOD, NCQ, AHCI, hot‑plug |
Yes, it supports dual‑channel DDR3 memory up to 1800 MHz (overclock) and also 1600, 1333, 1066, and 800 MHz non‑ECC un‑buffered modules.
The board uses a Realtek ALC662 5.1‑channel HD audio codec.
