The MSI A55M-E35 motherboard uses the AMD A55 FCH chipset, supports the Socket FM1 100W processor, has an integrated AMD Radeon HD 65XX/64XX graphics card, supports 32GB of memory, supports 1 x PCI Express 2.0 x16 slot, 2 x PCI Express 2.0 x1 slots, 2 x PCI slots, supports DVI, D-Sub interfaces, supports Realtek ALC662 audio codec, supports PCIE x 1 gigabit network card, supports 6 x SATA2 interfaces, supports 32Mb AMI UEFI Legal BIOS.

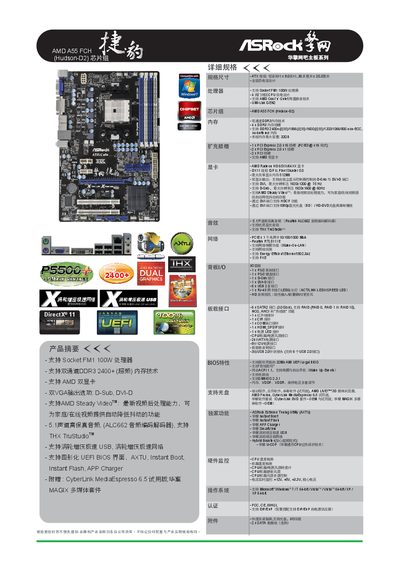

This manual provides an overview of the ASRock A55 FCH motherboard, including its supported CPU socket, memory types, expansion slots, and integrated audio and video features. It also describes BIOS options, power management, and networking capabilities.
The document contains tables of specifications, connector pin‑outs, and step‑by‑step instructions for installing the CPU, memory modules, storage devices, and peripheral cards, helping users configure the system for optimal performance. This manual is written in Chinese.
| CPU Socket | Socket FM1 100W |
|---|
It uses a Socket FM1 that supports up to 100 W CPUs.
