ASRock 770 Extreme3 is a motherboard supporting AMD 770 + SB710 chipset, supports 6-core processors, supports up to 140W CPU, supports AMD OverDrive™ system tuning through ACC (Advanced Clock Calibration) function, supports dual-channel DDR3 1600 memory, 2 x SATA3 6.0 Gb/s interfaces, 1 x USB 3.0 interface, 1 x eSATAII interface, PCIE Gigabit Ethernet card, supports ASRock Instant Boot, Instant Flash, ASRock Overclocking Regulator, Intelligent Power Saver, OC DNA, supports 7.1-channel high-fidelity audio, supports content protection function (ALC892 audio codec decoder), supports high-quality Blu-ray audio, supports ErP/EuP, bundled with CyberLink DVD kit - OEM and trial version; Creative Sound Blaster X-Fi MB - trial version.
The ASRock 770 Extreme3 is an AM3‑socket motherboard that supports up to six‑core AMD processors, dual‑channel DDR3 memory up to 16 GB, and high‑speed I/O such as SATA3, USB 3.0, and Gigabit Ethernet.

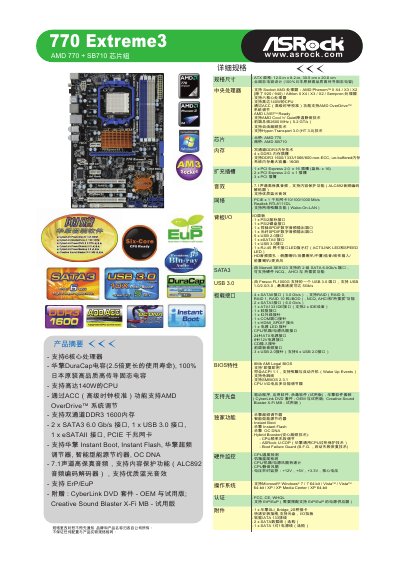

It includes ASRock utilities like Instant Flash for BIOS updates without an operating system, OC DNA for saving and sharing overclock profiles, and premium audio features with the ALC892 codec and Blu‑ray audio support. This manual is written in Chinese.
| CPU socket | Socket AM3 |
|---|---|
| Memory slots | 4 x DDR3 |
| Maximum memory | 16 GB |
| SATA3 ports | 2 x 6.0 Gb/s |
| USB 3.0 ports | 1 x USB 3.0 |
| PCI Express x16 slots | 1 x PCI Express 2.0 x16 |
| Audio codec | ALC892 |
| Ethernet controller | Realtek RTL8111DL |
