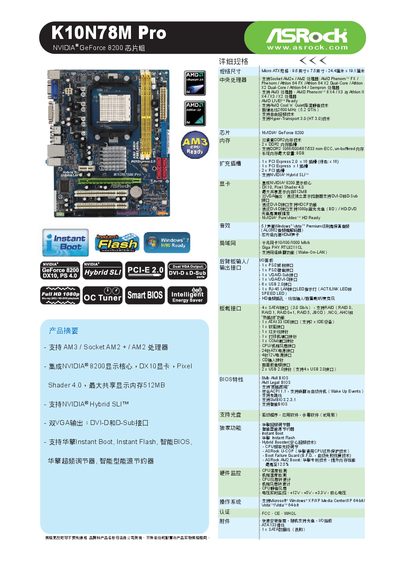

This document introduces a motherboard that supports AM3/Socket AM2+/AM2 processors, integrates NVIDIA 8200 display core, supports NVIDIA Hybrid SLI technology, has dual VGA output interfaces, and supports multiple exclusive features of ASRock.
The K10N78M Pro is a Micro‑ATX motherboard (9.6" × 7.5") that supports AMD Socket AM2+, AM2 and AM3 processors such as Phenom II, Athlon II and Sempron. It offers two DDR2 DIMM slots for up to 8 GB of non‑ECC memory, a PCI Express 2.0 × 16 slot, a PCI Express × 1 slot, and six USB 2.0 ports. Integrated graphics are provided by an NVIDIA GeForce 8200 chip with DVI‑D and D‑Sub outputs, while audio is handled by a Realtek ALC662 5.1‑channel codec. The board includes four SATA II ports with RAID 0/1/0+1/5/JBOD support and a Gigabit Ethernet controller with Wake‑On‑LAN.
The BIOS features ASRock Instant Boot, allowing the system to start in 3‑4 seconds, and Instant Flash, which enables BIOS updates directly from a USB drive. Additional BIOS options include Smart BIOS, Boot Failure Guard, and support for Hyper‑Transport 3.0. The manual details how to enable or disable these features, as well as configuration of RAID, audio, and video settings. This manual is written in Chinese.
| Form factor | Micro ATX (9.6" × 7.5") |
|---|---|
| CPU socket | Socket AM2+, AM2, AM3 |
| SATA ports | 4 × SATA II (3.0 Gb/s), RAID 0/1/0+1/5/JBOD |
| Audio codec | Realtek ALC662, 5.1‑channel |
| Network | RTL8211CL Gigabit PHY, Wake‑On‑LAN |
| USB ports | 6 × USB 2.0 |
It provides four SATA II ports (3.0 Gb/s) and supports RAID 0, RAID 1, RAID 0+1, RAID 5 and JBOD.
