A75M is a motherboard released by ASRock, supporting AMD A75 Hudson D3 chipset, supporting Socket FM1 100W processor, supporting dual-channel DDR3 2400+ (overclocked) memory technology, supporting AMD dual graphics cards, supporting 7.1-channel high-fidelity audio, supporting content protection function (ALC892 audio codec), supporting high-quality Blu-ray audio, supporting THX TruStudioTM, supporting turbo boost USB, graphical UEFI BIOS interface, supporting ASRock Full Time Play Technology, Instant Boot, Instant Flash, APP Charger, SmartView, and comes with CyberLink MediaEspresso 6.5 trial version

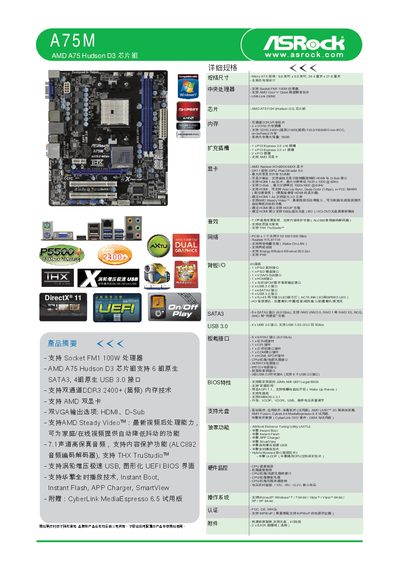

This manual details the ASRock A75M motherboard built on the AMD A75 Hudson‑D3 chipset. It supports FM1 socket CPUs up to 100 W, dual‑channel DDR3 memory up to 2400 MHz (16 GB max), and offers a range of connectivity options including HDMI, D‑Sub, SATA3, and USB 3.0.
Key features include the integrated Realtek ALC892 7.1‑channel audio codec with THX TruStudio support, AMD SteadyVideo processing, and a graphical UEFI BIOS. The board also provides Ethernet via a Realtek RTL8111E controller, multiple USB ports, and support for AMD Dual‑Graphics configurations. This manual is written in Chinese.
| CPU socket | FM1 (100 W) |
|---|---|
| Chipset | AMD A75 Hudson‑D3 |
| Memory type | DDR3 2400+ (up to 16 GB, dual‑channel) |
| USB 3.0 ports | 4 × USB 3.0 |
| Audio codec | Realtek ALC892, 7.1‑channel, THX TruStudio |
| Video outputs | HDMI and D‑Sub |
| Graphics support | AMD Dual‑Graphics (CrossFire) |
| BIOS | Graphical UEFI BIOS |
| Ethernet controller | Realtek RTL8111E |
It supports the FM1 socket for processors up to 100 W.
Yes, it includes four USB 3.0 ports for high‑speed data transfer.
It uses the Realtek ALC892 codec, providing 7.1‑channel high‑fidelity audio with THX TruStudio support.
