The ASRock H61M-HVS motherboard adopts a full solid capacitor design, supports Intel's second-generation Core i7/i5/i3 processors, supports dual-channel DDR3 memory technology, supports Intel HD Graphics integrated visual technology, supports PCI Express 2.0 x16 slots, supports HDMI 1.4a technology, supports 7.1-channel high-fidelity audio, and comes with ASRock Full Time Playback, AXTU, graphical UEFI, Instant Boot, Instant Flash, APP Charger, SmartView and many other features.

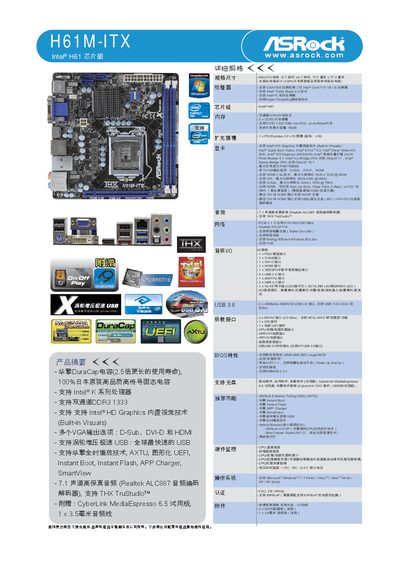

This manual describes the ASRock H61M-ITX Mini‑ITX motherboard, including its form factor, supported LGA1155 second‑generation Intel Core processors, dual DDR3 memory slots (up to 16 GB, 1333/1066 MHz), and a single PCI Express 2.0 x16 slot. It also lists the integrated graphics capabilities, audio codec, and networking controller.
The document details the back‑panel connectors such as D‑Sub, DVI, HDMI video outputs, Realtek ALC887 audio, Realtek RTL8111E Gigabit Ethernet, USB 2.0/3.0 ports, SATA2 interfaces, and power connectors (24‑pin ATX, 4‑pin 12 V). BIOS features, including a graphical AMI UEFI interface and various performance technologies, are also covered. This manual is written in Chinese.
| Form factor | Mini‑ITX |
|---|---|
| CPU socket | LGA1155 |
| Memory slots | 2 x DDR3 |
| Maximum memory | 16 GB |
| Supported DDR3 speeds | 1333 MHz / 1066 MHz |
| PCI Express x16 slots | 1 |
| Video outputs | D‑Sub, DVI, HDMI |
| HDMI max resolution | 1920 × 1200 @ 60 Hz |
| Audio codec | Realtek ALC887 |
| USB ports | 4 x USB 2.0, 2 x USB 3.0 |
| SATA ports | 3 x SATA2 (3 Gbps) |
| Power connectors | 24‑pin ATX, 4‑pin 12 V |
| BIOS | AMI UEFI with graphical interface |
It supports second‑generation Intel Core i7/i5/i3 processors with an LGA1155 socket.
The motherboard provides D‑Sub, DVI and HDMI video outputs.
