This motherboard uses the Intel® H61 chipset, supports the second generation Intel® Core™ i7/i5/i3 processors, supports Intel® Turbo Boost 2.0 technology, supports Intel® K-Series unlocked processors, supports Hyper-Threading technology, supports DDR3 1333/1066 non-ECC, un-buffered memory, and has a maximum memory capacity of 16GB.

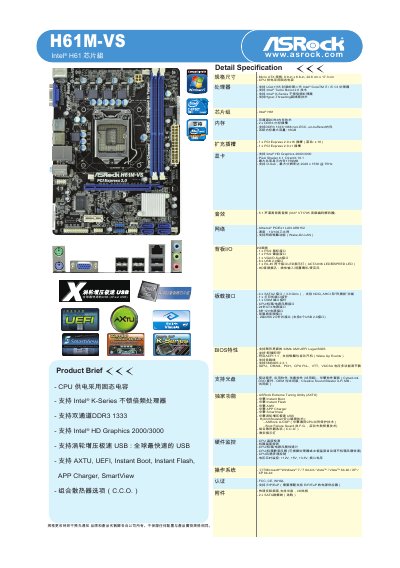

The ASRock H61M-VS manual provides detailed specifications for the Micro‑ATX motherboard, covering supported CPUs, memory, expansion slots, I/O interfaces, BIOS features, and bundled software utilities. It also describes power‑design details, hardware monitoring, and networking capabilities.
Additional sections explain the ASRock Extreme Tuning Utility (AXTU), SmartView internet integration, and included CyberLink multimedia applications, helping users configure performance, manage fan speeds, and use multimedia tools out‑of‑the‑box. This manual is written in Chinese.
| CPU socket | LGA1155 |
|---|---|
| Supported processors | Intel® 2nd‑gen Core i7/i5/i3 (K‑Series unlocked) |
| Memory slots | 2 x DDR3 |
| Maximum memory | 16 GB |
| PCI Express slots | 1 x PCIe 2.0 x16, 1 x PCIe 2.0 x1 |
| SATA ports | 4 x SATA2 (3.0 Gb/s) |
| USB ports | 6 x USB 2.0 |
| LAN | Atheros AR8152 10/100 Ethernet |
| Audio | 5.1 channel VIA VT1705 codec |
| BIOS/UEFI | 32 MB AMI UEFI graphical BIOS |
It uses an LGA1155 socket for second‑generation Intel Core i7, i5, and i3 processors.
The board provides two DDR3 slots with a total memory capacity of up to 16 GB.
It includes one PCI Express 2.0 x16 slot and one PCI Express 2.0 x1 slot.
The motherboard offers six USB 2.0 ports.
