ASRock B75M-HDV motherboard is based on Intel® G41 chipset, supporting LGA 775 processors, integrated Intel® Graphics Media Accelerator X4500 graphics core, supporting Pixel Shader 4.0, DirectX 10 and maximum shared graphics memory 352MB, supporting dual VGA outputs, supporting DVI-D and D-Sub interfaces, supporting full HD 1080p Blu-ray Disc (BD) / HD-DVD Disc high definition playback.

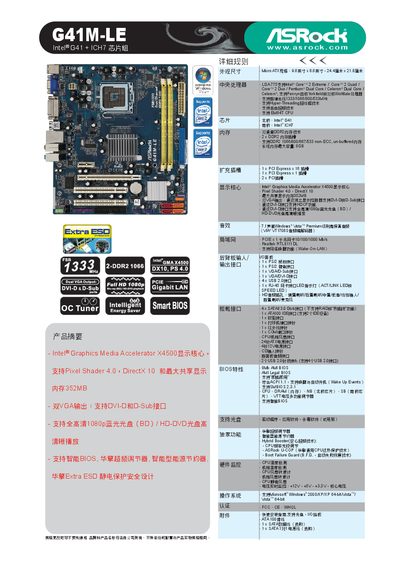

This manual covers the ASRock G41M-LE motherboard, detailing its Intel G41 northbridge, ICH7 southbridge, and support for LGA775 processors including Core2 Duo, Core2 Quad, and Celeron models. It lists the supported memory types, expansion slots, and I/O interfaces, and explains BIOS features such as Smart BIOS and Hybrid Boost overclocking.
The document also includes hardware monitoring capabilities, power connector layouts, and a quick‑install guide with required cables and accessories. Regulatory certifications (FCC, CE, WHQL) and supported operating systems (Windows XP, Vista, 7 64‑bit) are noted. This manual is written in Chinese.
| CPU Socket | LGA775 |
|---|---|
| Chipset | Intel G41 / ICH7 |
| Memory Type | DDR2 (non‑ECC, unbuffered) |
| Memory Slots | 2 x DDR2 DIMM |
| Maximum Memory | 8 GB |
| PCI Express Slots | 1 x PCIe x16, 1 x PCIe x1 |
| PCI Slots | 2 x PCI |
| SATA Ports | 4 x SATA 3.0 Gb/s |
| USB 2.0 Ports | 4 |
| LAN | Realtek RTL8111DL, 10/100/1000 Mbps |
It supports LGA775 processors including Intel Core2 Duo, Core2 Quad, Pentium Dual‑Core, Celeron Dual‑Core, and compatible Celeron models.
The board uses DDR2 non‑ECC unbuffered memory, with two DIMM slots for a maximum of 8 GB.
There are four SATA 3.0 Gb/s ports, and hot‑swap is not supported.
Yes, HDCP is supported through the DVI‑D connector.
