The document introduces a product with features including processor, memory, expansion slots, graphics card, sound effects, and network. The product supports Intel processors and dual-channel DDR3 memory technology, with HD graphics output and high-fidelity audio function, and also supports network wake-up function.

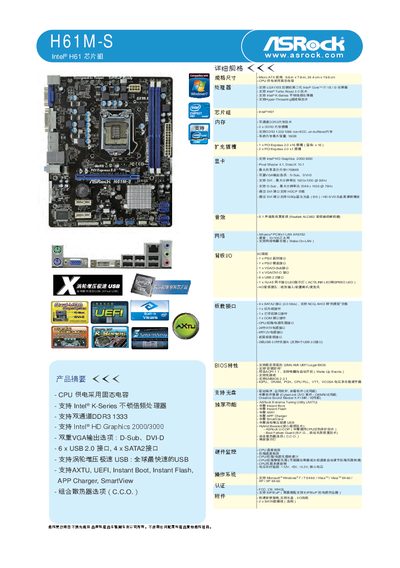

The H61M‑S is a micro‑ATX motherboard built around the Intel H61 chipset. It supports LGA 1155/1156 CPUs (and LGA 775 coolers), dual‑channel DDR3 1333/1066 memory up to 16 GB, a PCI‑Express 2.0 x16 slot, two PCI‑Express 2.0 x1 slots, six SATA2 ports and six USB 2.0 ports. Audio is provided by a Realtek ALC662 5.1‑channel codec and networking by a 10/100 Mbps LAN controller.
The board includes ASRock’s UEFI BIOS with graphical interface, SmartView internet tools, and the Extreme Tuning Utility (AXTU) for hardware monitoring, fan control and over‑clocking. Several trial software packages such as CyberLink PowerDVD and Creative Sound Blaster are also supplied on the disc. This manual is written in Chinese.
| Memory type | DDR3 1333/1066 non‑ECC, un‑buffered |
|---|---|
| USB ports | 6 × USB 2.0 |
| Audio codec | Realtek ALC662 5.1‑channel HD audio |
| BIOS type | UEFI with graphical interface |
The board provides six USB 2.0 ports.
Yes, it features a UEFI BIOS with a graphical interface and mouse support.
