ASRock P55TM8-M motherboard features Intel® G41 chipset, supports DDR3 1333(OC) memory, integrated Intel® Graphics Media Accelerator X4500 graphics core, supports 5.1-channel high fidelity audio, supports Instant Boot, Instant Flash, overclocking regulator, OC DNA, SmartView, APP Charger and other technologies.

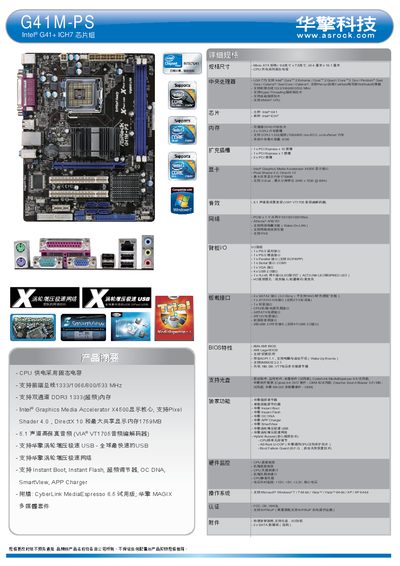

This manual describes the key features of the ASRock G41M-PS motherboard, including its LGA775 CPU socket, support for Intel Core 2 series processors, and a range of BIOS options such as instant boot and over‑clocking utilities. It also lists the supported memory types, front‑side‑bus speeds, and integrated graphics capabilities.
The document details the motherboard’s connector layout, showing the number and type of PCI‑Express, PCI, SATA, USB, audio, and network ports, as well as power connectors and front‑panel interfaces. Quick‑installation guidance and hardware‑monitoring tools are also included. This manual is written in Chinese.
| CPU socket | LGA775 |
|---|---|
| Supported front‑side bus speeds | 1333/1066/800/533 MHz |
| Memory slots | 2 × DDR3 |
| PCI Express x16 slots | 1 |
| PCI Express x1 slots | 1 |
| PCI slots | 2 |
| IDE ports | 1 × ATA100 |
| Network | Gigabit Ethernet |
It uses an LGA775 socket.
