The document introduces a product with a central processing unit chip and expandable memory slots. The product supports graphics card and sound effects, and has LAN connectivity. The back panel input/output interfaces and onboard interfaces provide multiple connection options. The product also has BIOS features, supports optical discs, and has exclusive functions, and comes with accessories. The product complies with specifications and certifications, and has hardware monitoring capabilities. It supports multiple operating systems, but the specifications may change.

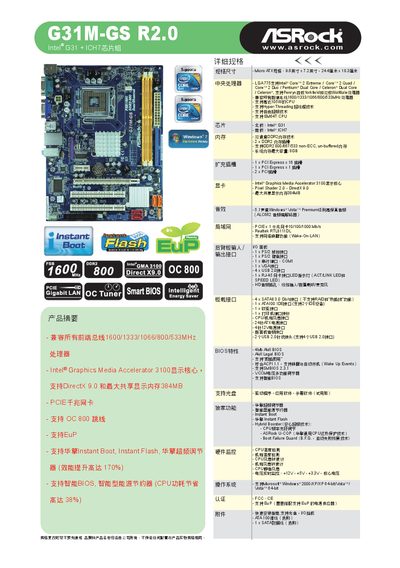

The G31M-GS R2.0 motherboard supports LGA775 CPUs, Intel G31 northbridge and ICH7 southbridge, DDR2 memory up to 8 GB, and offers a range of I/O including PCI‑Express slots, SATA ports, USB 2.0, and Realtek gigabit Ethernet. It includes energy‑saving technologies such as EuP compliance and ASRock's Instant Boot and Instant Flash utilities.
This manual covers the product summary, detailed specifications, BIOS and hardware monitoring features, installation guidance, and instructions for using the Instant Boot, Instant Flash, and energy‑saving functions. It also lists supported operating systems and provides regulatory information. This manual is written in Chinese.
| CPU socket | LGA775 |
|---|---|
| Chipset | Intel G31 (northbridge) / Intel ICH7 (southbridge) |
| Memory type | DDR2 |
| Maximum memory capacity | 8 GB |
| Expansion slots | 1× PCI‑Express x16, 1× PCI‑Express x1, 2× PCI |
| SATA ports | 4× SATA 3.0 Gb/s (no RAID, no hot‑plug) |
| Audio codec | ALC662 |
| Supported operating systems | Windows 2000, XP, Vista 64‑bit |
The board provides four SATA 3.0 Gb/s ports, and they do not support RAID or hot‑plug.
The motherboard can accommodate up to 8 GB of DDR2 memory.
It uses an LGA775 socket supporting Intel Core2, Pentium Dual‑Core, Celeron, and other LGA775 processors.
