ASRock H55M-LE is a micro ATX motherboard that supports Intel LGA1156 processors, with an Intel H55 chipset, supports DDR3 2600+(overclocked)/2133(overclocked)/1866(overclocked)/1600/1333/1066 memory, has 1 x PCI Express 2.0 x16 slot, 1 x PCI Express 2.0 x1 slot, 2 x PCI slots, 5.1-channel high-fidelity audio, PCIE x 1 10/100/1000 Mb/s gigabit network card, 6 x SATAII interface (3.0 Gb/s), support NCQ, AHCI and “hot plug” function, and equipped with 16Mb AMI Legal BIOS, support “Plug and Play”, comply with ACPI 1.1, support wake up and automatic startup (Wake Up Events) and other functions.

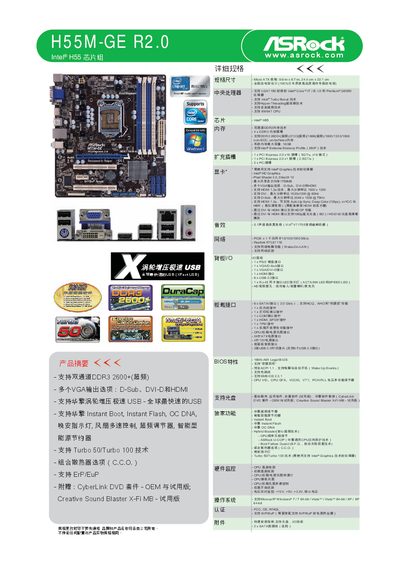

This manual describes the H55M-GE R2.0 motherboard specifications, including the Intel H55 chipset, Micro ATX form factor, four DDR3 memory slots supporting up to 16 GB, multiple expansion slots (PCI‑Express 2.0 x16, x1, and two PCI), six SATA 3.0 ports, video outputs (D‑Sub, DVI‑D, HDMI) and 5.1‑channel audio via a VIA VT1705 codec.
It also explains BIOS utilities such as Turbo 50 one‑click overclocking, Instant Boot, Instant Flash, and OC DNA for saving and sharing overclock profiles, plus the software bundle (CyberLink DVD suite, Creative Sound Blaster X‑Fi MB trial, and ASRock utilities). This manual is written in Chinese.
| Chipset | Intel H55 |
|---|---|
| Form factor | Micro ATX |
| Memory slots | 4 DDR3 DIMM slots |
| Maximum memory capacity | 16 GB |
| SATA ports | 6 SATA 3.0 ports (NCQ, AHCI, hot‑plug) |
| Video outputs | D‑Sub, DVI‑D, HDMI |
| Audio codec | VIA VT1705, 5.1‑channel |
Enter the BIOS and click the Turbo 50 button; the system automatically overclocks the CPU, memory and GPU and adjusts related settings.
The board provides six SATA 3.0 ports that support NCQ, AHCI, and hot‑plug functionality.
