This motherboard uses LGA1155 interface, supports second generation Intel Core i7/i5/i3 processors, supports dual channel DDR3 1333 memory, supports Intel HD Graphics built-in visual technology, supports dual VGA output options: D-Sub and HDMI, supports turbo boost extreme USB: the world's fastest USB, graphical UEFI BIOS interface, supports ASRock Extreme Tuning Utility (AXTU), Instant Boot, Instant Flash, night light, APP Charger, SmartView, combined heat sink options (C.C.O.)

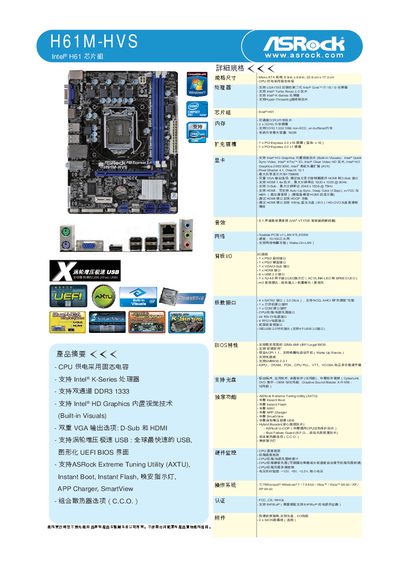

This manual covers the key features of the ASRock H61M-HVS motherboard, including support for Intel H61 chipset, dual VGA (D‑Sub and HDMI) outputs, USB 2.0 ports, and a range of audio and networking options. It also describes the UEFI BIOS interface, SmartView software, and the combo cooler options for various CPU sockets.
Installation guidance, hardware monitoring tools, and software utilities such as the ASRock Extreme Tuning Utility (AXTU) are detailed, helping users set up the system, adjust fan speeds, and optimize performance. This manual is written in Chinese.
| Memory Type | DDR3 1333/1066 non‑ECC, un‑buffered |
|---|---|
| Maximum Memory | 16 GB |
| PCI Express Slots | 1 × PCIe 2.0 × 16, 1 × PCIe 2.0 × 1 |
| Video Outputs | Dual VGA (D‑Sub) and HDMI 1.4 |
| USB Ports | 6 × USB 2.0 |
| Audio Codec | VIA VT1705 |
| BIOS | 32 MB AMI UEFI BIOS |
It provides six USB 2.0 ports on the rear panel.
The motherboard accepts DDR3 1333/1066 non‑ECC, un‑buffered modules up to a total of 16 GB.
It offers dual VGA (D‑Sub) and an HDMI 1.4 output, supporting resolutions up to 1920 × 1200 @ 60 Hz.
