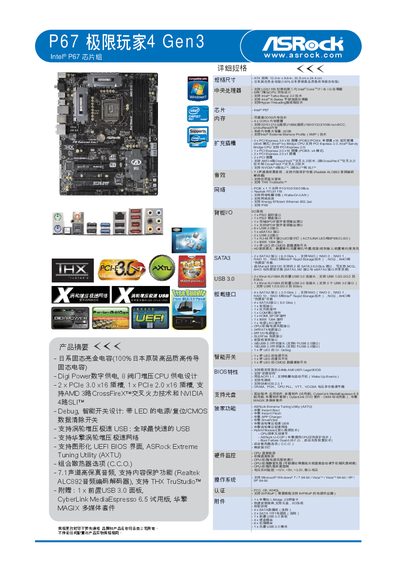

This document introduces the specifications and features of the ASRock's fastest USB (XFast USB) Intel® P67 chipset P67 Extreme4 Gen3 motherboard. It supports second generation Intel® CoreTM i7 / i5 / i3 processors in LGA1155 package, with 8-Phase power design for enhanced CPU power delivery, support for Intel® Turbo Boost 2.0 technology and Intel® K-Series unlocked multiplier processors. The motherboard also supports dual channel DDR3 memory technology, with maximum memory capacity of 32GB, and supports AMD and NVIDIA's multi-GPU CrossFireXTM and SLITM technologies. It is equipped with a Realtek RTL8111E Gigabit LAN and USB 3.0 interfaces, among others. The motherboard offers high performance and stability, making it suitable for extreme gamers and high-performance computing needs.
This manual details the specifications and features of the ASRock P67 Extreme4 Gen3 motherboard, including supported CPUs, memory configurations, expansion slots, and integrated audio and networking components. It also includes installation tips, BIOS settings, and software utilities such as the ASRock Extreme Tuning Utility.
The document lists connector layouts, power delivery design, and performance‑enhancing technologies like XFast LAN, USB 3.0, and PCI‑Express 3.0. It provides guidance for configuring RAID, using the front‑panel USB 3.0 connectors, and adjusting fan speeds via the built‑in monitoring tools. This manual is written in Chinese.
| USB ports | 6 × USB 2.0, 2 × USB 3.0 rear, 2 × USB 3.0 front |
|---|---|
| SATA ports | 2 × SATA3 (6 Gb/s) + 4 × SATA2 (3 Gb/s) |
The board provides two USB 3.0 ports on the rear panel and two USB 3.0 ports on the front panel, for a total of four USB 3.0 connectors.
