This motherboard uses Intel H61 chipset, supports the second generation Intel Core i7/i5/i3 processors, supports DDR3 1333 memory, supports Intel HD Graphics built-in visual technology, supports dual VGA output, supports Intel Turbo Boost 2.0 technology, supports Intel K-Series processors, supports Hyper-Threading hyper-threading technology, supports ASRock Extreme Tuning Utility (AXTU), Instant Boot, Instant Flash, night light, APP Charger, SmartView, supports combined heat sink options (C.C.O.), supports 10/100/1000 Mb/s gigabit network card, supports Wake-On-LAN network wake-up function, supports network line detection function, supports Energy Efficient Ethernet 802.3az

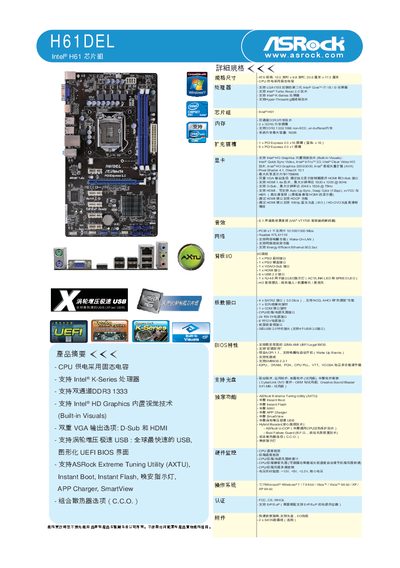

This manual describes the ASRock H61DEL motherboard, detailing its ATX dimensions, supported Intel H61 chipset, dual-channel DDR3 memory, PCI Express slots, and a variety of I/O connectors including HDMI, D-Sub, USB 2.0, SATA, and Ethernet. It also lists the included accessories and optional cooling solutions.
The document explains the UEFI BIOS interface, hardware monitoring tools, and bundled software such as the ASRock Extreme Tuning Utility, SmartView, and various CyberLink trial applications. Installation guidance, connector pin‑outs, and system requirements are also covered.
| CPU Socket | LGA 1155 (also supports LGA 775 and LGA 1156 with compatible coolers) |
|---|---|
| Memory Type | DDR3 1333/1066 non‑ECC, un‑buffered |
| Maximum Memory Capacity | 16 GB |
| Video Outputs | HDMI 1.4 (max 1920 × 1200 @ 60 Hz) and D‑Sub (max 2048 × 1536 @ 75 Hz) |
| Audio Codec | VIA VT1705 5.1‑channel HD audio |
| USB Ports | 6 × USB 2.0 |
The motherboard includes six USB 2.0 ports.
Yes, it has an HDMI 1.4 port that supports up to 1920 × 1200 at 60 Hz.
