The ASRock Z77 Pro4 motherboard uses a solid-state capacitor design, supports the second-generation Intel CoreTM i7/i5/i3 processors, and integrates the Intel P67 chipset, supporting DDR3 2133(overclocking)/1866(overclocking)/1600/1333/1066 non-ECC, un-buffered memory. , Supports a maximum of 32GB of memory and Intel Extreme Memory Profile (XMP) technology.

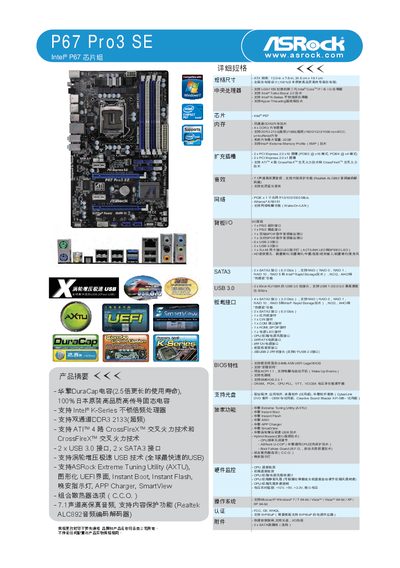

This manual covers the key specifications of the ASRock P67 Pro3 SE motherboard, including the Intel P67 chipset, LGA1155 CPU socket, dual‑channel DDR3 memory support up to 32 GB, and a range of expansion slots. It also details audio, networking, storage, and USB interfaces, as well as power connector layouts and BIOS/UEFI features.
Additional sections describe the bundled software utilities such as the ASRock Extreme Tuning Utility, SmartView web integration, and the included trial versions of CyberLink media applications. The document provides installation tips, BIOS configuration guidance, and troubleshooting notes for end users and system builders. This manual is written in Chinese.
| Chipset | Intel P67 |
|---|---|
| CPU Socket | LGA1155 |
| Memory Type | DDR3 dual‑channel |
| Memory Slots | 4 x DDR3 DIMM |
| Maximum Memory Capacity | 32 GB |
| Audio Codec | Realtek ALC892 7.1‑channel |
| Network Interface | Atheros AR8151 Gigabit Ethernet |
| SATA3 Ports | 2 x 6 Gb/s |
| SATA2 Ports | 4 x 3 Gb/s |
| USB 2.0 Ports | 6 |
| USB 3.0 Ports | 2 |
It uses an LGA1155 socket for Intel processors.
The motherboard includes two USB 3.0 ports.
The board features the Realtek ALC892 7.1‑channel audio codec.
The motherboard supports up to 32 GB of DDR3 memory.
