The ASRock H61M-VG3 motherboard supports the second generation Intel Core processors, uses a 100% solid capacitor design, and has the built-in Intel HD Graphics 2000/3000 integrated visual technology. It supports PCIe gigabit network cards, supports ASRock Turbo Boost SuperSpeed USB and Turbo Boost SuperSpeed network technology, and supports the graphical UEFI BIOS interface. , CyberLink MediaEspresso 6.5 trial version, ASRock MAGIX multimedia suite.

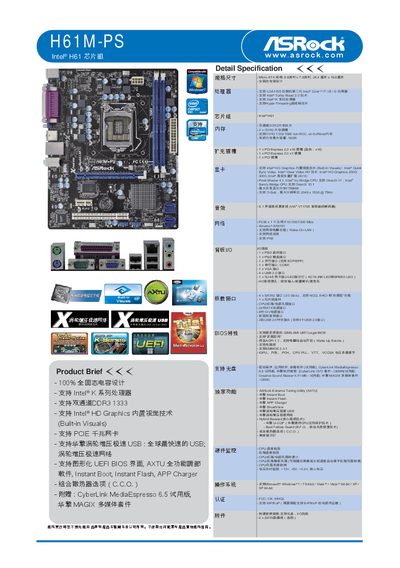

This manual describes the H61M-PS motherboard built on the Intel H61 chipset. It lists supported CPUs, memory types, expansion slots, audio, networking, USB, and storage interfaces, as well as the included software utilities such as AXTU, Instant Boot, and MediaEspresso.
The guide also covers installation steps, BIOS configuration, hardware monitoring, and performance tuning features like XFast LAN and Turbo Boost USB. Detailed tables give the technical specifications and recommended settings for optimal operation. This manual is written in Chinese.
| Memory Support | DDR3 1333/1066 non‑ECC, up to 16 GB |
|---|---|
| Network | Gigabit Ethernet with Wake‑On‑LAN and PXE |
| USB Ports | 4 × USB 2.0 rear, additional internal headers |
The board provides four USB 2.0 ports on the rear panel plus additional internal USB headers.
Yes, it supports dual‑channel DDR3 1333/1066 non‑ECC memory up to 16 GB.
It includes a Gigabit Ethernet controller with Wake‑On‑LAN, PXE boot support, and XFast LAN optimization.
