The P67 Pro Gaming motherboard is based on the Intel® P67 chipset and supports the second generation Intel® CoreTM i7/i5/i3 processors. It supports DDR3 2133(overclocking)/1866(overclocking)/1600/1333/1066 non-ECC, un-buffered memory, and can support up to 32GB of memory. The motherboard has 3 PCI Express 2.0 x16 slots, 2 PCI Express 2.0 x1 slots, and 2 PCI slots. It supports ATITM 4-way CrossFireXTM Crossfire technology, 3-way CrossFireXTM Crossfire technology, and CrossFireXTM Crossfire technology. Supports NVIDIA® 4-way SLITM and SLITM.

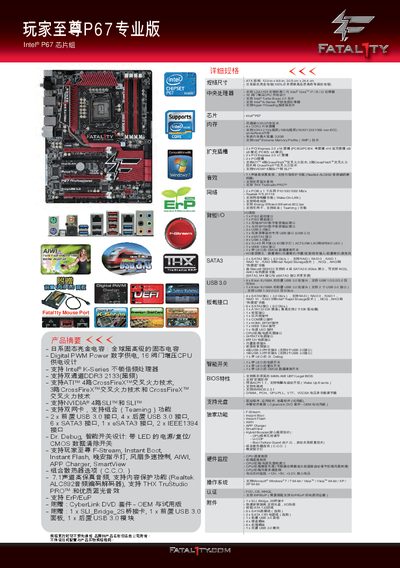

This manual covers the hardware specifications of the Fatal1ty P67 Professional board, including CPU socket, memory support, PCI‑Express slots, USB 3.0 and SATA3 connectivity, audio codec, and networking features. It also explains the UEFI BIOS interface, SmartView software, and the F‑Stream mouse polling rate utility.
Installation instructions detail how to mount the board, connect front‑panel USB 3.0 ports, attach SATA drives, and configure dual LAN teaming. Power delivery, digital PWM regulation, and cooling options are described for optimal over‑clocking performance. This manual is written in Chinese.
| CPU socket | LGA 775 |
|---|---|
| Maximum memory | 32 GB |
| SATA3 ports | 6 |
| Audio codec | Realtek ALC892 |
The motherboard supports up to 32 GB of DDR3 memory.
Yes, it includes two LAN ports and supports Teaming to combine them into a single high‑bandwidth connection.
