MKDS 1 is a printed circuit screw termination block with 3.5 or 3.81 mm pitch, without housing interlocking, in green colour.

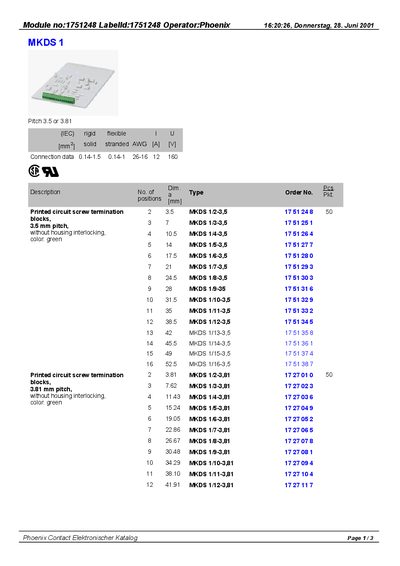

The document provides the specifications for the Phoenix Contact MKDS printed‑circuit screw termination blocks identified by module number 1751248. The blocks are available with a 3.5 mm or 3.81 mm pitch, green colour, and without housing interlocking.
Technical data includes dimensions, pitch, hole and pin sizes, rated voltage and current, insulation material, and recommended accessories such as a screwdriver and a marker card. Order numbers for each variant and a drilling diagram are also listed. This manual is written in German.
| Pitch | 3.5 mm or 3.81 mm |
|---|---|
| Colour | green |
| Housing interlocking | none |
The terminal block is offered with a pitch of either 3.5 mm or 3.81 mm.
