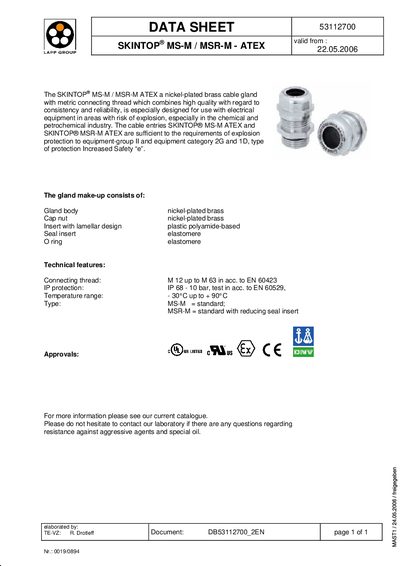

The SKINTOP® MS-M / MSR-M ATEX is a nickel-plated brass cable gland with metric connecting thread, which combines high quality with regard to consistency and reliability, is especially designed for use with electrical equipment in areas with risk of explosion, especially in the chemical and petrochemical industry.
The SKINTOP® MS-M and MSR-M ATEX cable glands are nickel‑plated brass connectors with metric threads, designed for use with electrical equipment in hazardous environments such as chemical and petrochemical plants. They meet explosion‑protection requirements for equipment groups 2G and 1D, type “e”.
Technical features include a connecting thread range from M12 to M63, IP68 protection tested to 10 bar, and an operating temperature range of –30 °C to +90 °C. The gland body and cap nut are made of nickel‑plated brass, with a polyamide‑based insert, elastomeric seal insert and O‑ring.
| Connecting thread | M12 up to M63 |
|---|---|
| IP protection | IP68 – 10 bar |
| Temperature range | -30°C to +90°C |
| Gland body material | Nickel‑plated brass |
| Cap nut material | Nickel‑plated brass |
| Insert material | Plastic polyamide‑based |
| Seal insert | Elastomer |
It can be used from –30 °C up to +90 °C.
The gland is rated IP68 and tested to withstand 10 bar pressure.
The gland accepts metric threads from M12 up to M63.
