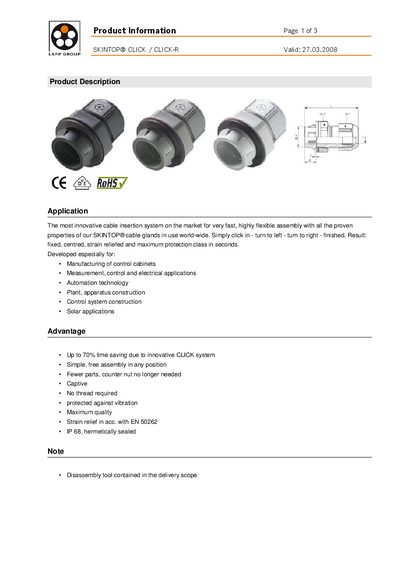

SKINTOP® CLICK / CLICK-R is the most innovative cable insertion system on the market for very fast, highly flexible assembly with all the proven properties of our SKINTOP® cable glands in use world-wide. Simply click in - turn to left - turn to right - finished. Result: fixed, centred, strain reliefed and maximum protection class in seconds.
The SKINTOP® CLICK / CLICK‑R system provides a fast, flexible assembly method for cable glands. Installation is as simple as clicking the gland in, turning left, then right, resulting in a fixed, centred, strain‑relieved connection with maximum protection.
Technical data include IP68‑5 bar protection, operation from –20 °C to +100 °C, bodies made of special polyamide, seals of special elastomer, and colour options such as silver‑grey, light grey and black. The product is approved for sizes M12 to M32 and is suited for control cabinets, automation, plant construction, and solar applications.
| Degree of protection | IP68 - 5 bar |
|---|---|
| Operating temperature range | -20 °C to +100 °C |
| Body material | Special polyamide |
| Seal material | Special elastomer |
| Available colours | Silver‑grey, light grey, black |
| Size range | M12, M16, M20, M25, M32 |
Installation is done by clicking the gland in, turning it left, then turning it right until it is fixed.
The gland offers IP68 protection and is hermetically sealed.
It can be used from –20 °C up to +100 °C.
Up to 70 % time saving is reported thanks to the innovative CLICK system.
