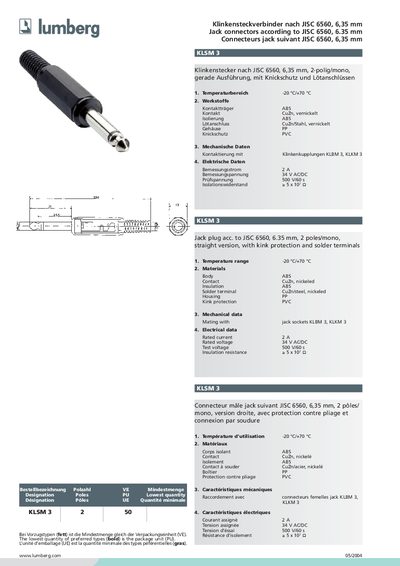

LUMBERG Klinkensteckverbinder nach JISC 6560 6 35 mm Jack connectors according to JISC 6560 6.35 mm Connecteurs jack suivant JISC 6560 6 35 mm handbook(2)

This is a KLSM 3 connector produced by Lumberg, featuring 2 pin mono, with kink protection and solder terminals

Brand: Lumberg
Category: Other Electronics
Document type: Product Leaflet
Language: German
Pages: 1
File format: PDF
File size: 55 KB
Published: 10 May, 2012
Updated: 01 October, 2023
MD5 checksum: A7BB11369FF2A96CF0A6E307D3AF0884
PDF: LUMBERG Klinkensteckverbinder nach JISC 6560 6 35 mm Jack connectors according to JISC 6560 6.35 mm Connecteurs jack suivant JISC 6560 6 35 mm handbook(2) PDF

About this manual

The leaflet describes the Lumberg KLSIM 3 2‑pole/mono jack connector that complies with JISC 6560. It includes the connector’s mechanical design, kink protection, and compatible jack sockets (KLBM 3, KLKM 3).\n\nKey data such as temperature limits, material composition, rated current and voltage, test voltage, and insulation resistance are listed, along with ordering information and minimum order quantities. This manual is written in German.

What's inside

Temperature range
Materials
Mechanical data
Electrical data
Order designation
Minimum quantity

Specifications

Rated current	2 A
Rated voltage	34 V AC/DC
Test voltage	500 V
Insulation resistance	5 × 10⁷ Ω
Temperature range	-20 °C to +70 °C
Contact material	CuZn, nickel‑plated
Housing material	PP
Kink protection material	PVC
