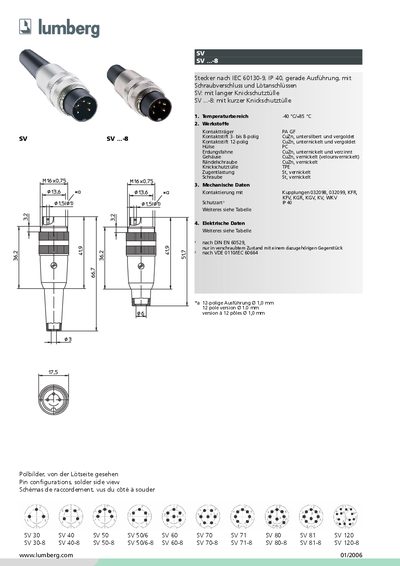

This document is the datasheet of SV series round connectors. It introduces the features and characteristics of the product, including temperature range, materials, mechanical data, electrical data, etc.
The SV series are circular connectors compliant with IEC 60130‑9 and rated IP40. They feature a straight version with a threaded joint and optional kink‑protection (long or short) and are supplied in 3‑8 pole and 12‑pole configurations.
The leaflet lists temperature range, material specifications (PA GF body, copper alloy contacts pre‑silvered and gilded), mating connector families (032098, 032099, KFR, KFV, KGR, KGV, KV, WKV), and mechanical details such as M16×0.75 screws and strain‑relief features. Packaging is described as individual parts in a plastic bag within a cardboard box. This manual is written in German.
| Operating Temperature | -40 °C to +85 °C |
|---|---|
| Contact Material | Copper alloy (Cuzn), pre‑silvered and gilded |
| Body Material | PA GF (glass‑filled polyamide) |
| Number of Poles | 3‑8 poles and 12 poles |
| Screw Size | M16×0.75 |
The SV connectors can be used from –40 °C up to +85 °C.
The contacts are made of copper alloy (Cuzn) that is pre‑silvered and gilded.
The SV series is offered in 3‑to‑8‑pole versions and a 12‑pole version.
