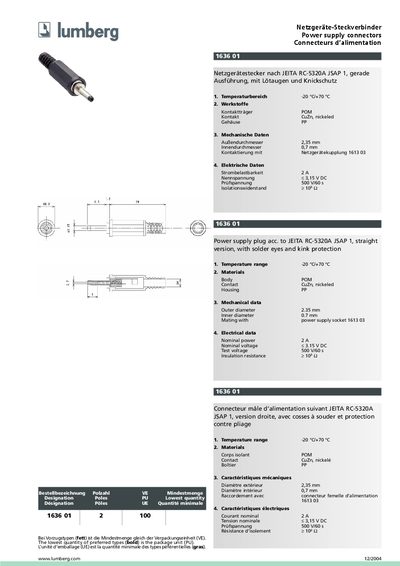

This document describes the features and characteristics of the Netzgerätestecker Power supply connectors, including temperature range, materials, mechanical data, and electrical data.
The Lumberg 1636 01 2 100 power supply connector is described with its temperature range of –20 °C to +70 °C, body material (POM), contacts (CuZn, nickeled) and housing (PP). Mechanical data include an outer diameter of 2.35 mm and an inner diameter of 0.7 mm, with a matching female socket part number 1613 03.
Electrical specifications provide a nominal current of 2 A, nominal voltage below 3.15 V DC, a test voltage of 500 V for 60 s, and an insulation resistance of 10² Ω. Ordering information and minimum order quantities are also given. This manual is written in German.
| Temperature range | -20 °C to +70 °C |
|---|---|
| Body material | POM |
| Contact material | CuZn, nickeled |
| Housing material | PP |
| Nominal current | 2 A |
| Nominal voltage | <3.15 V DC |
| Test voltage | 500 V / 60 s |
| Insulation resistance | 10² Ω |
The connector can be used from –20 °C up to +70 °C.
The body is made of POM, the contacts are CuZn and nickel‑plated, and the housing is PP.
It is rated for a nominal current of 2 A, nominal voltage below 3.15 V DC, a test voltage of 500 V for 60 seconds, and an insulation resistance of 10² Ω.
