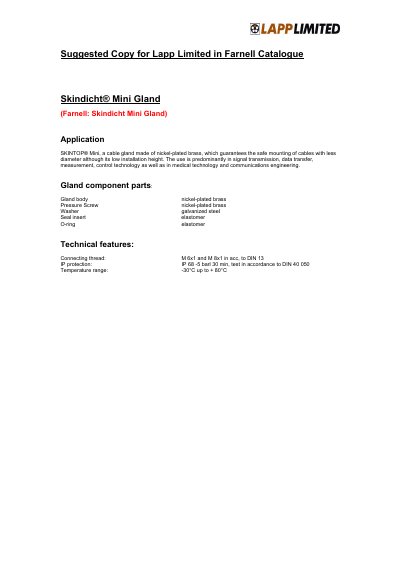

SKINTOP® Mini is a cable gland made of nickel-plated brass, which guarantees the safe mounting of cables with less diameter although its low installation height. The use is predominantly in signal transmission, data transfer, measurement, control technology as well as in medical technology and communications engineering. Gland component parts: Gland body nickel-plated brass Pressure Screw nickel-plated brass Washer galvanized steel Seal insert elastomer O-ring elastomer Technical features: Connecting thread: M 6x1 and M 8x1 in acc, to DIN 13 IP protection: IP 68 -5 barl 30 min, test in accordance to DIN 40 050 Temperature range: -30°C up to + 80°C
The Skindicht Mini cable gland is designed for signal transmission, data transfer, measurement, control technology, medical technology and communications engineering. Its low installation height makes it suitable for small‑diameter cables.
Technical features include nickel‑plated brass body and pressure screw, galvanized steel washer, elastomer seal insert and O‑ring, M6x1 and M8x1 threads (DIN 13), IP68 rating (‑5 bar, 30 min, DIN 40 050), and an operating temperature range of –30 °C to + 80 °C.
| Material | Nickel‑plated brass |
|---|---|
| Connecting thread | M6x1 and M8x1 |
| IP protection | IP68 (‑5 bar, 30 min) |
| Temperature range | -30 °C to +80 °C |
| Washer material | Galvanized steel |
| Seal insert material | Elastomer |
| O‑ring material | Elastomer |
It operates from –30 °C up to +80 °C.
It has an IP68 rating, tested to –5 bar for 30 minutes.
The gland uses M6x1 and M8x1 threads.
