This product is a RCA chassis socket, model BTOR 1, brand Lumberg. The product is made of PBT GF material, with CuZn copper-plated and tinned internal contact and CuZn copper-plated and nickel-plated external contact. The working temperature range is -20°C to +70°C, the insertion force is ≤30N, the separation force is 1-15N, and the mating life is 5000 times. The rated current is 2A, the rated voltage is 34V AC/DC, the test voltage is 500V/60s, and the insulation resistance is ≥108Ω.

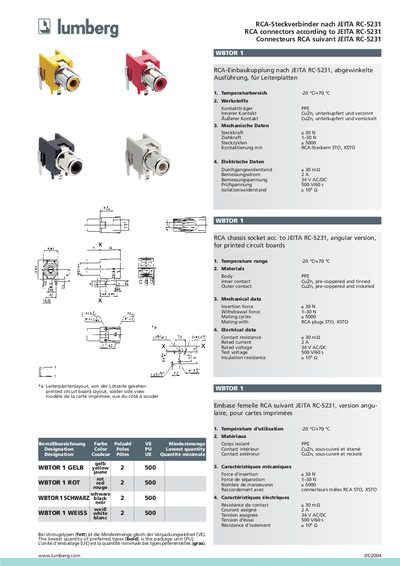

This datasheet describes the RCA‑Einbaukupplung (RCA insert coupling) that complies with JEITA RC‑5231. It is intended for soldered mounting on printed circuit boards and is offered in an angular version. The document lists the temperature range, material composition, mechanical forces, electrical ratings and ordering details.
Key sections cover temperature limits, contact materials (copper‑zinc, pre‑coppered and tin‑ or nickel‑plated), mechanical data such as insertion and withdrawal forces, mating cycle life, and electrical parameters including contact resistance, rated current and voltage, test voltage and insulation resistance. This manual is written in German.
| Temperature range | -20 °C to +70 °C |
|---|---|
| Inner contact material | CuZn, pre‑coppered and tin‑plated |
| Insertion force | < 30 N |
| Withdrawal force | 1‑30 N |
| Mating cycles | ≥ 5000 |
| Contact resistance | < 30 mΩ |
| Rated current | 2 A |
| Rated voltage | 34 VAC/DC |
| Test voltage | 500 V for 60 s |
| Insulation resistance | ≥ 10⁸ Ω |
It is rated for temperatures from –20 °C up to +70 °C.
The connector is specified for at least 5 000 mating cycles.
An insertion force of less than 30 N is required.
