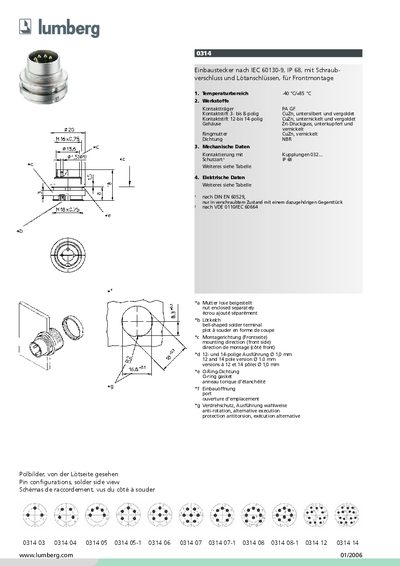

This document introduces an Einbaustecker product launched by Lumberg in 2006, which complies with the IEC 60130-9 standard and has an IP 68 protection rating. It features a screw and solder connection method and is designed for front mounting. The product's characteristics include a wide temperature range (-40 °C to +85 °C), contact materials of CuZn (3-8 pins) and CuZn (12-14 pins), a Zn die-cast housing, a CuZn ring nut, and an NBR sealing ring.
The Lumberg 0314 is a front‑mount circular connector designed according to IEC 60130‑9. It features a threaded locking mechanism, solder terminals, and is available in versions with 3‑8 or 12‑14 contact pins. The connector is rated IP68 for dust and water protection and can be used in temperatures from –40 °C to +85 °C.
Mechanical and electrical characteristics are provided in tables, including housing material (zinc die‑cast, pre‑coppered), ring nut material (copper‑nickel), gasket type (NBR), and detailed pin configurations. The product is supplied in a cardboard box and complies with DIN EN 60529 and VDE 0110/IEC 60664 standards.
| Operating temperature range | -40 °C to +85 °C |
|---|---|
| Contact pin options | 3‑8 pins or 12‑14 pins |
| Housing material | Zinc die‑cast, pre‑coppered |
| Ring nut material | Copper‑nickel (Cuzn) |
| Gasket material | NBR |
| Body material | PA GF (glass‑filled polyamide) |
It can be used from –40 °C up to +85 °C.
The connector is offered with either 3‑8 pins or 12‑14 pins.
The housing is made of zinc die‑cast that is pre‑coppered.
