This document describes the SWUM™ flange-mounted connector, which is an IP 68/67 rated connector suitable for front mounting. It features a wide temperature range and durability.

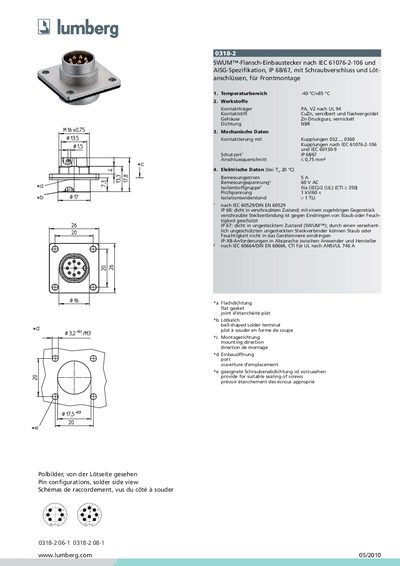

The 0318-2 SWUM is a flanged circular connector designed for front‑mounting applications. It complies with IEC 61076‑2‑106 and the AISG specification and offers a threaded joint with solder terminals.
Key features include a temperature range of –40 °C to +85 °C, IP68/67 protection, a rated current of 5 A, rated voltage of 60 VAC, and a wire‑section limit of <0.75 mm². Materials used are a Zn‑diecast housing, nickel plating, NBR gasket, and silver‑plated, flash‑gilded copper pins. This manual is written in German.
| Temperature range | -40 °C to +85 °C |
|---|---|
| IP rating | IP68/67 |
| Rated current | 5 A |
| Rated voltage | 60 VAC |
| Wire section | <0.75 mm² |
| Insulation resistance | >1 × 10⁹ Ω |
| Test voltage | 1 kV / 60 s |
| Contact pin material | Copper (Cuzn), silvered and flash‑gilded |
| Housing material | Zn die‑cast, nickel plated |
It is rated IP68/67, sealed when locked and also sealed when unmated.
The connector is rated for 5 A current and 60 VAC voltage.
It operates from –40 °C up to +85 °C.
The maximum wire cross‑section is less than 0.75 mm².
