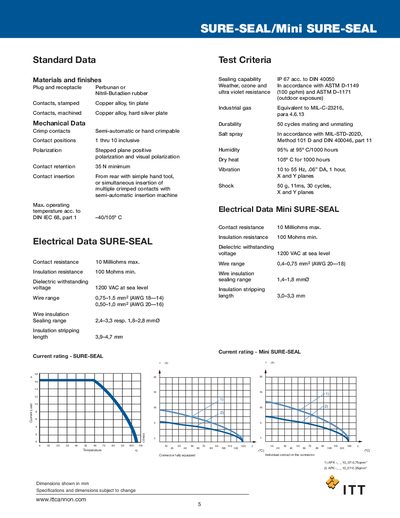

The SURE-SEAL and Mini SURE-SEAL connectors are designed to meet stringent environmental and mechanical standards, including IP67 sealing, MIL‑C‑23216 contact materials, and extensive durability testing. The document lists the standard data test criteria, material finishes, and mechanical data such as durability cycles and polarization.
Electrical performance data cover dielectric withstanding voltage, contact resistance, insulation resistance, and temperature limits. Detailed dimensions, shell sizes, and part numbers for various contact configurations are provided, along with wiring range and insulation stripping dimensions.
| IP rating | IP67 |
|---|---|
| Operating temperature range | -40 °C to 105 °C |
| Dielectric withstanding voltage | 1200 VAC at sea level |
| Contact resistance | 10 mΩ max |
| Insulation resistance | 100 MΩ min |
| Humidity test | 95 % at 95 °C for 1000 h |
| Dry heat test | 105 °C for 1000 h |
| Vibration test | 10‑55 Hz, .06" DA, 1 h |
| Shock test | 50 g, 11 ms, 30 cycles |
| Contact retention | 35 N minimum |
| Wire range (Mini SURE-SEAL) | 0.4‑0.75 mm² (AWG 20‑18) |
They are rated IP67 according to DIN 40050.
The connectors can withstand 1200 VAC at sea level.
It operates from –40 °C up to 105 °C.
