This is a 3.5mm audio connector, supports 3 poles/stereo, with switch, suitable for PCB board

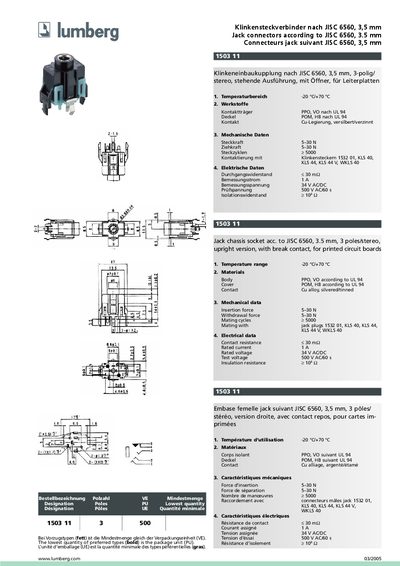

The Lumberg JISC 6560 3.5 mm jack connector is a 3‑pole stereo socket designed for printed‑circuit‑board mounting. It meets the JISC 6560 standard and operates from –20 °C to +70 °C.
Key parameters include a body of PPO/VO (UL 94), a POM/HB cover, silver‑tinned copper‑alloy contacts, insertion and withdrawal forces of 5–30 N, 5000 mating cycles, contact resistance under 30 mΩ, a rated current of 1 A, a rated voltage of 34 V AC/DC, and a test voltage of 500 V AC at 60 Hz.
| Temperature range | -20 °C to +70 °C |
|---|---|
| Body material | PPO, VO (UL 94) |
| Cover material | POM, HB (UL 94) |
| Contact material | Copper alloy, silver‑tinned |
| Insertion force | 5–30 N |
| Withdrawal force | 5–30 N |
| Mating cycles | 5000 |
| Contact resistance | < 30 mΩ |
| Rated current | 1 A |
| Insulation resistance | 10⁹ Ω |
It can be used from –20 °C up to +70 °C.
The connector is rated for 5000 mating cycles.
The connector is rated for 1 A and 34 V AC/DC.
An insertion force of 5 to 30 N is required.
