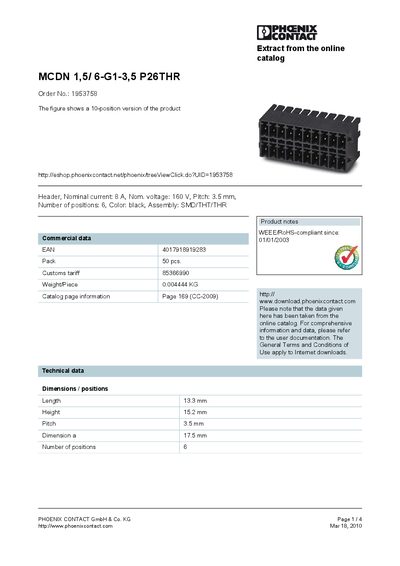

The MCDN 1,5/ 6-G1-3,5 P26THR is a connector from PHOENIX CONTACT. It has an rated current of 8A, a rated voltage of 160V, a pin spacing of 3.5mm, a black color and a SMD/THT/THR assembly type.
The MCDN 1,5/6‑G1‑3,5 P26THR is a compact 6‑position terminal block designed for 8 A nominal current and 160 V nominal voltage applications. It features a 3.5 mm pitch and is available in black with SMD/THT/THR mounting options.
Key data include a length of 13.3 mm, height of 15.2 mm, and a weight of 0.004444 kg per piece. The product complies with RoHS/WEEE regulations and carries UL and CUL certifications. Accessories such as marker cards and keying profiles are listed, and ordering is done via Order No. 1953758 on the Phoenix Contact e‑shop.
| Nominal current | 8 A per position |
|---|---|
| Nominal voltage | 160 V |
| Pitch | 3.5 mm |
| Number of positions | 6 |
| Length | 13.3 mm |
| Height | 15.2 mm |
| Weight per piece | 0.004444 kg |
| EAN | 4017918919283 |
The terminal block is rated for 8 A nominal current per position.
It provides six positions for connections.
The block measures 13.3 mm in length, 15.2 mm in height, with a 3.5 mm pitch.
It can be ordered using Order No. 1953758 from the Phoenix Contact online shop.
