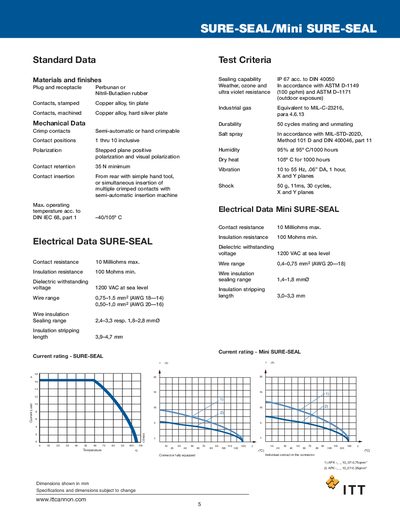

The document provides specifications and dimensions, materials and finishes, mechanical and electrical data, testing standards, and durability of SURE-SEAL/Mini SURE-SEAL products.
The SURE-SEAL and Mini SURE-SEAL series are sealed connectors designed for harsh environments. They feature IP67 sealing, UV‑resistant nitrile‑butadiene rubber, and copper alloy contacts with tin or hard silver plating. Mechanical data include 50 mating cycles and a durability rating for vibration and shock.
Key electrical specifications are a contact resistance of 10 mΩ max, insulation resistance of 100 MΩ min, and a dielectric withstanding voltage of 1200 VAC at sea level. The operating temperature range is –40 °C to 105 °C, and humidity resistance is 95 % at 95 °C for 1000 h. The document lists contact arrangements, part numbers, and dimensional drawings for each connector size.
| Sealing capability | IP67 |
|---|---|
| Durability (mating cycles) | 50 cycles |
| Operating temperature range | -40 °C to 105 °C |
| Contact resistance | 10 mΩ max |
| Insulation resistance | 100 MΩ min |
| Dielectric withstanding voltage | 1200 VAC at sea level |
| Humidity resistance | 95 % at 95 °C for 1000 h |
It meets IP67 according to DIN 40050.
The contact resistance is limited to 10 mΩ maximum.
The connector can withstand 1200 VAC at sea level.
