BTS 612 N1 is a smart two-channel high side power switch with the following features: overload protection, current limitation, short circuit protection, thermal shutdown, overvoltage protection (including load dump), fast demagnetization, reverse battery protection, undervoltage and overvoltage shutdown with auto restart and hysteresis, open drain diagnostic output, open load detection in OFF-state, CMOS compatible input, loss of ground and loss of Vbb protection, electrostatic discharge (ESD) protection. It is used for 12 V and 24 V DC grounded loads, all types of resistive, inductive and capacitive loads. It can replace electromechanical relays, fuses and discrete circuits.
The BTS 612 N1 is a smart two‑channel high‑side power switch that replaces electromechanical relays, fuses and discrete circuits. It offers overload protection, current limitation, over‑voltage and short‑circuit protection, thermal shutdown, reverse‑battery protection and diagnostic outputs.

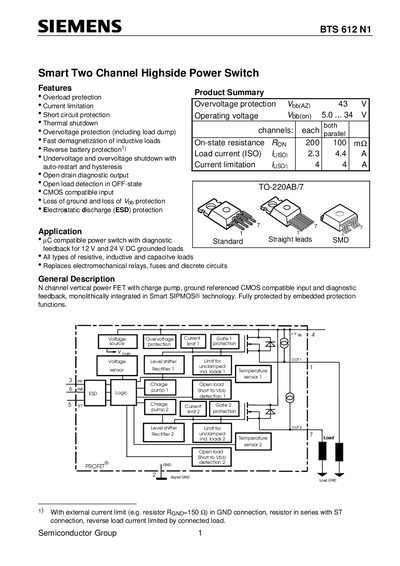

The handbook lists detailed electrical parameters such as operating voltage 5.0‑34 V, on‑state resistance around 200 mΩ, input voltage range –10 V to +16 V, standby current 90‑150 µA and power dissipation up to 36 W. It also describes protection functions, truth tables, package dimensions (TO‑220AB/7) and ordering codes.
| Input voltage range | -10 V … +16 V |
|---|---|
| Package type | Standard TO‑220AB/7 |
The component is supplied in a standard TO‑220AB/7 package.
