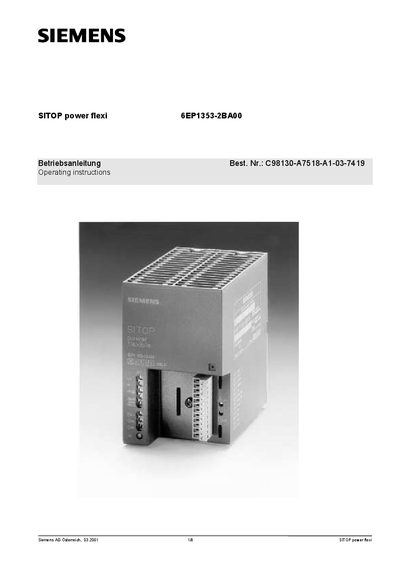

This document is the operating instructions for the SITOP power flexi product produced by Siemens AG Österreich. It provides information on installation, adjustment, and usage precautions for the product.
The Siemens SITOP power flexi 6EP1353-2BA00 is a rail‑mounted, built‑in power supply designed for 120 V or 230 V single‑phase AC input. It provides an adjustable, potential‑free DC output from 3 V to 52 V with current limitation between 2 A and 10 A. The manual contains safety warnings, installation notes, technical data, and environmental specifications.
Key sections cover safety precautions, input and output variable settings, mounting requirements, and compliance with relevant EN and IEC standards. The document also provides adjustment procedures for the output voltage (potentiometer Ua) and current limit (potentiometer lamax). This manual is written in German.
| Input voltage | AC 120/230 V, 50/60 Hz |
|---|---|
| Input current | 2.2 A / 0.9 A (120 V / 230 V) |
| Power consumption | 138 W |
| Weight | 0.9 kg |
| Output voltage range | 3 V to 52 V (adjustable) |
| Maximum output current | 10 A (3 V‑12 V range) |
| Maximum output power | 120 W (12 V‑52 V range) |
| Efficiency at full load (230 V) | > 75 % |
| Operating temperature | 0 °C to +60 °C |
| Storage temperature | -25 °C to +85 °C |
| Humidity class | EN 60721 class 3K3 |
| Degree of protection | IP20 |
The maximum output power is 120 W when the output voltage is set between 12 V and 52 V.
It accepts AC input voltages of 120 V or 230 V at 50/60 Hz.
