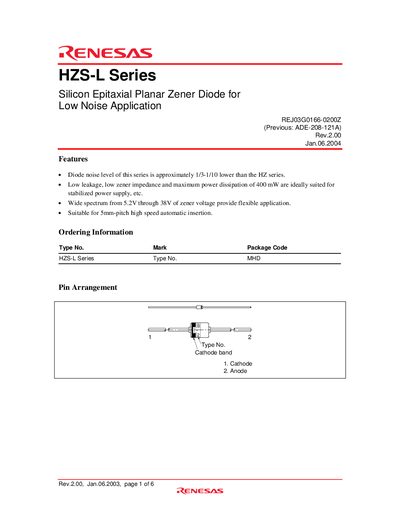

This document is the characteristic parameters manual of HZS-L series silicon epitaxial planar zener diodes. It mainly introduces the features and characteristics of the series products, including packaging form, absolute maximum ratings and electrical characteristics.
The HZS-L Series silicon epitaxial planar Zener diodes are designed for low‑noise applications, offering noise levels up to ten times lower than the HZ series, low leakage, low impedance, and a power dissipation of 400 mW. The series covers a wide Zener voltage range from 5.2 V to 38 V and is suitable for 5 mm‑pitch high‑speed automatic insertion.
The document lists absolute maximum ratings, electrical characteristics for each grade, package dimensions, and safety notices. It also includes ordering information, pin arrangement, and graphical data such as Zener voltage versus current and temperature coefficients.
