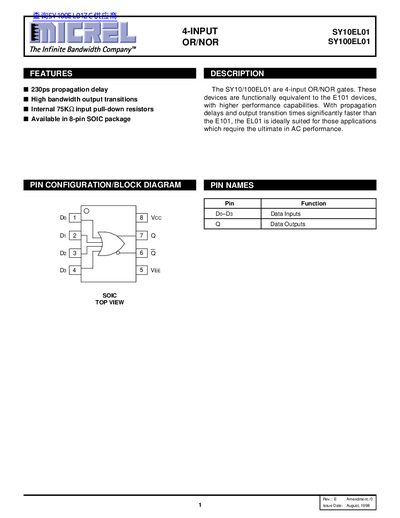

The SY10EL01/100EL01 are 4-input OR/NOR gates with 230ps propagation delay, high bandwidth output transitions and 75KΩ input pull-down resistors, ideal for applications requiring the ultimate in AC performance.
This datasheet describes Micrel's SY10EL01 and SY100EL01 4‑input OR/NOR gates, highlighting their high‑speed performance with propagation delays around 230 ps and internal 75 kΩ pull‑down resistors. The devices are offered in an 8‑pin SOIC package suitable for applications requiring fast AC performance.
The document includes detailed DC and AC electrical characteristics, pin‑out diagrams, package dimensions, and ordering codes for both part numbers. It also provides typical values for power‑supply current, propagation delay, and output rise/fall times.
