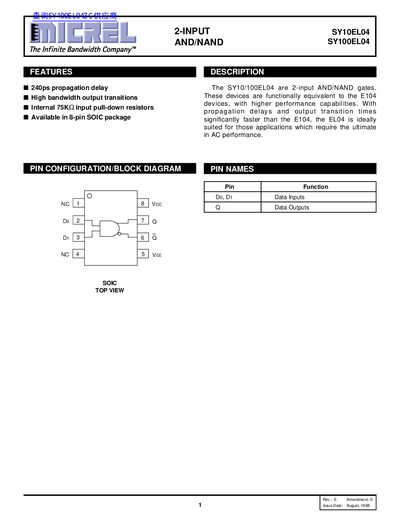

The SY10/100EL04 are 2-input AND/NAND gates with 240ps propagation delay, high bandwidth output transitions, internal 75KΩ input pull-down resistors and available in 8-pin SOIC package.
The SY10EL04 and SY100EL04 are 2‑input AND/NAND logic gates with high‑speed performance, featuring a 240 ps propagation delay and high‑bandwidth output transitions. They include internal 75 kΩ input pull‑down resistors and are offered in an 8‑pin SOIC package.
The datasheet lists detailed DC and AC electrical characteristics, such as typical power‑supply current of 14 mA, supply voltage range of –4.75 V to –5.5 V, and propagation delay (tPLH) of 235 ps. Ordering codes for commercial packaging are provided (e.g., SY10EL04ZC, SY100EL04ZCTR).
| Propagation delay | 240 ps |
|---|---|
| Output transition speed | High bandwidth |
| Input pull‑down resistor | 75 kΩ |
| tPLH propagation delay | 235 ps |
The SY10EL04 has a propagation delay of 240 ps.
It is available in an 8‑pin SOIC package.
The SY10EL04 can be ordered as SY10EL04ZC or SY10EL04ZCTR.
