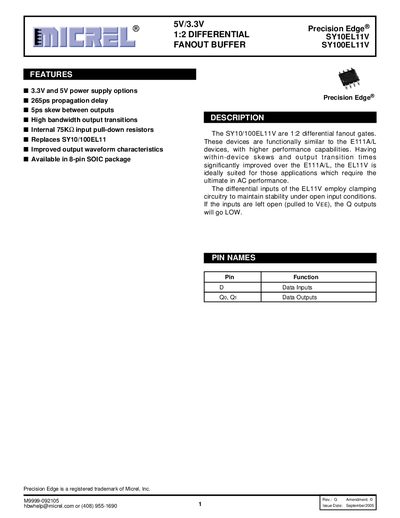

SY10EL11V SY100EL11V are 1:2 differential fanout buffers with 5V/3.3V power supply options, 265ps propagation delay, 5ps skew between outputs, high bandwidth output transitions, internal 75KΩ input pull-down resistors, replaces SY10/100EL11, improved output waveform characteristics, available in 8-pin SOIC package.
The SY10EL11V and SY100EL11V are 1:2 differential fanout buffers offered by Micrel with 5 V or 3.3 V supply options. They feature low propagation delay, minimal output skew, high‑bandwidth transitions, and internal 75 kΩ pull‑down resistors, making them suitable for high‑performance AC applications.
The datasheet lists electrical specifications such as a propagation delay of 135 ps to 385 ps, output rise/fall times of 100 ps to 350 ps, continuous output current of 50 mA, and an operating temperature range of –40 °C to +85 °C. Devices are supplied in an 8‑pin SOIC (Z8‑1) package with various commercial and industrial marking options.
| Supply Voltage Options | 5 V / 3.3 V |
|---|---|
| Propagation Delay | 135 ps – 385 ps |
| Output Rise/Fall Times | 100 ps – 350 ps |
| Continuous Output Current | 50 mA |
| Operating Temperature Range | –40 °C to +85 °C |
| Package Type | 8‑pin SOIC (Z8‑1) |
The devices can be powered from either a 5 V or a 3.3 V supply.
The maximum continuous output current is 50 mA.
Propagation delay ranges from 135 ps to 385 ps.
They are supplied in an 8‑pin SOIC (Z8‑1) package.
