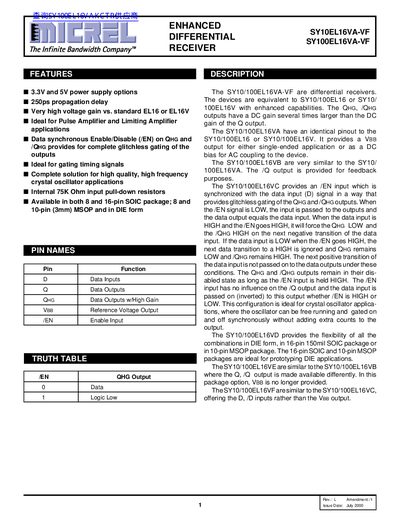

SY10/100EL16VA-VF are differential receivers. The devices are equivalent to SY10/100EL16 or SY10/ 100EL16V with enhanced capabilities. The QHG, /QHG outputs have a DC gain several times larger than the DC gain of the Q output. The SY10/100EL16VA have an identical pinout to the SY10/100EL16 or SY10/100EL16V. It provides a VBB output for either single-ended application or as a DC bias for AC coupling to the device. The SY10/100EL16VB are very similar to the SY10/ 100EL16VA. The /Q output is provided for feedback purposes. The SY10/100EL16VC provides an /EN input which is synchronized with the data input (D) signal in a way that provides glitchless gating of the QHG and /QHG outputs. When the /EN signal is LOW, the input is passed to the outputs and the data output equals the data input. When the data input is HIGH and the /EN goes HIGH, it will force the QHG LOW and the /QHG HIGH on the next negative transition of the data input. If the data input is LOW when the /EN goes HIGH, the next data transition to a HIGH is ignored and QHG remains LOW and /QHG remains HIGH. The next positive transition of the data input is not passed on to the data outputs under these conditions. The QHG and /QHG outputs remain in their dis- abled state as long as the /EN input is held HIGH. The /EN input has no influence on the /Q output and the data input is passed on (inverted) to this output whether /EN is HIGH or LOW. This configuration is ideal for crystal oscillator applica- tions, where the crystal oscillator provides the clock.
The SY10/100EL16VA-VF series are high‑gain differential receivers offered in 8‑ and 16‑pin SOIC, 8‑ and 10‑pin MSOP, and DIE packages. They support 3.3 V or 5 V supplies, provide internal 75 kΩ pull‑down resistors, and include high‑gain QHG outputs for crystal‑oscillator and timing‑signal applications.
The document lists detailed pin‑out diagrams, DC and AC electrical specifications such as propagation delay (250 ps) and VEE range (‑3.0 V to ‑5.5 V), as well as ordering codes for each package variant. Mechanical drawings give package dimensions for both metric and imperial units.
| Power supply options | 3.3 V and 5 V |
|---|---|
| Propagation delay | 250 ps |
| Input pull‑down resistor | 75 kΩ |
It supports either a 3.3 V or a 5 V power supply.
The device has a typical propagation delay of 250 ps.
Yes, it includes a 75 kΩ input pull‑down resistor.
